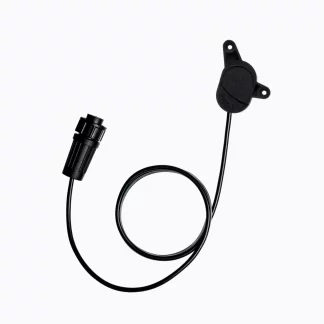

JOOBY AQUARIS SNS WIZE01 100

Description

How it works

Once the sensor is installed on the meter’s housing and the radio module is activated, the data reading procedure is initiated. Information is conveyed by transmitting counted pulses from the sensor to the radio module, with the pulse count directly corresponding to the number of revolutions of the water meter hand or a multiple thereof.

The data is transmitted through a 1.5-meter cable using a PY07-6 connector.

All recorded data is securely stored in the non-volatile memory of the radio module. Subsequently, at specified time intervals, the data is automatically transmitted to the resource provider’s server via the LoRaWAN network.

The received data is processed by the metering system, which converts it into readable readings. This system allows the resource provider to monitor and analyze resource consumption in real time.

Sensor Specifications

• Sensor model – Jooby Aquaris SNS WIZE01 100
• Water meter model – ZENNER
  ETKD-ZR (ETKD-M, ETKD-M-P)

• Pulse coefficient – 1 pulse per 1 liter
• Operating temperature – 1 °C … 60 °C
