JOOBY AQUARIS SNS WISE01 100

 26,78

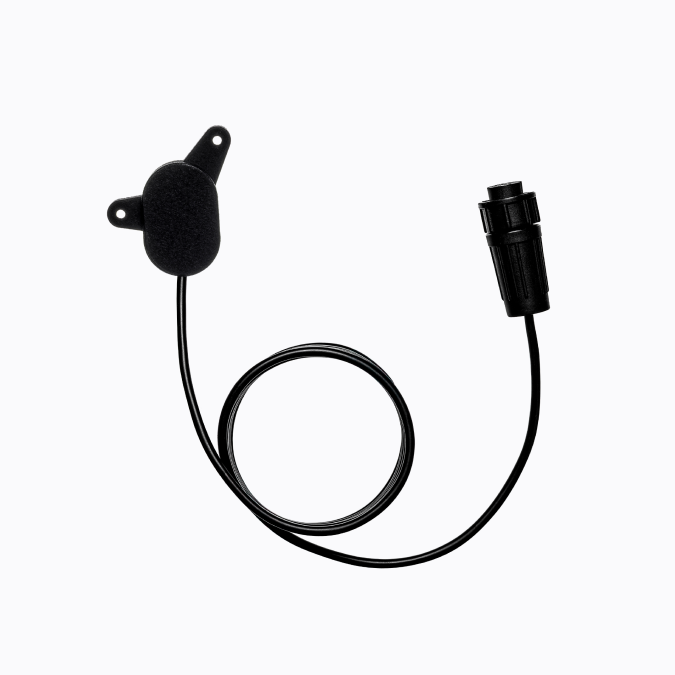

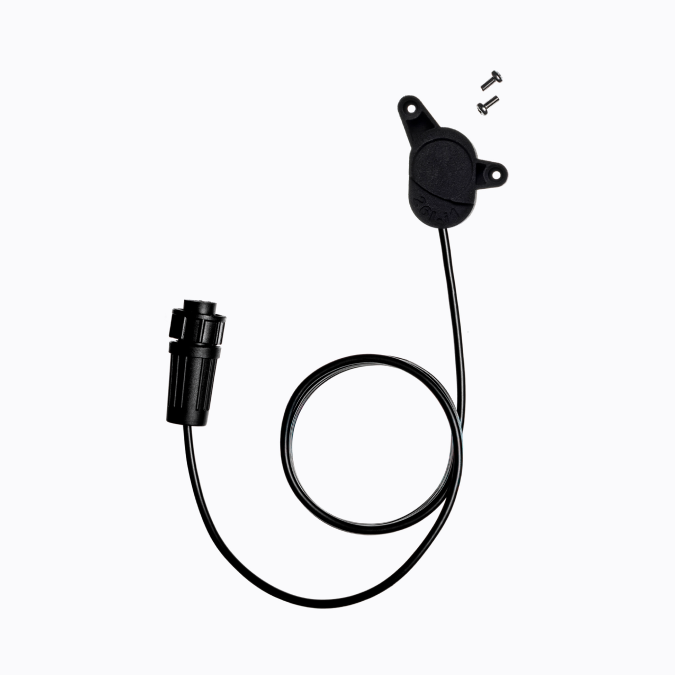

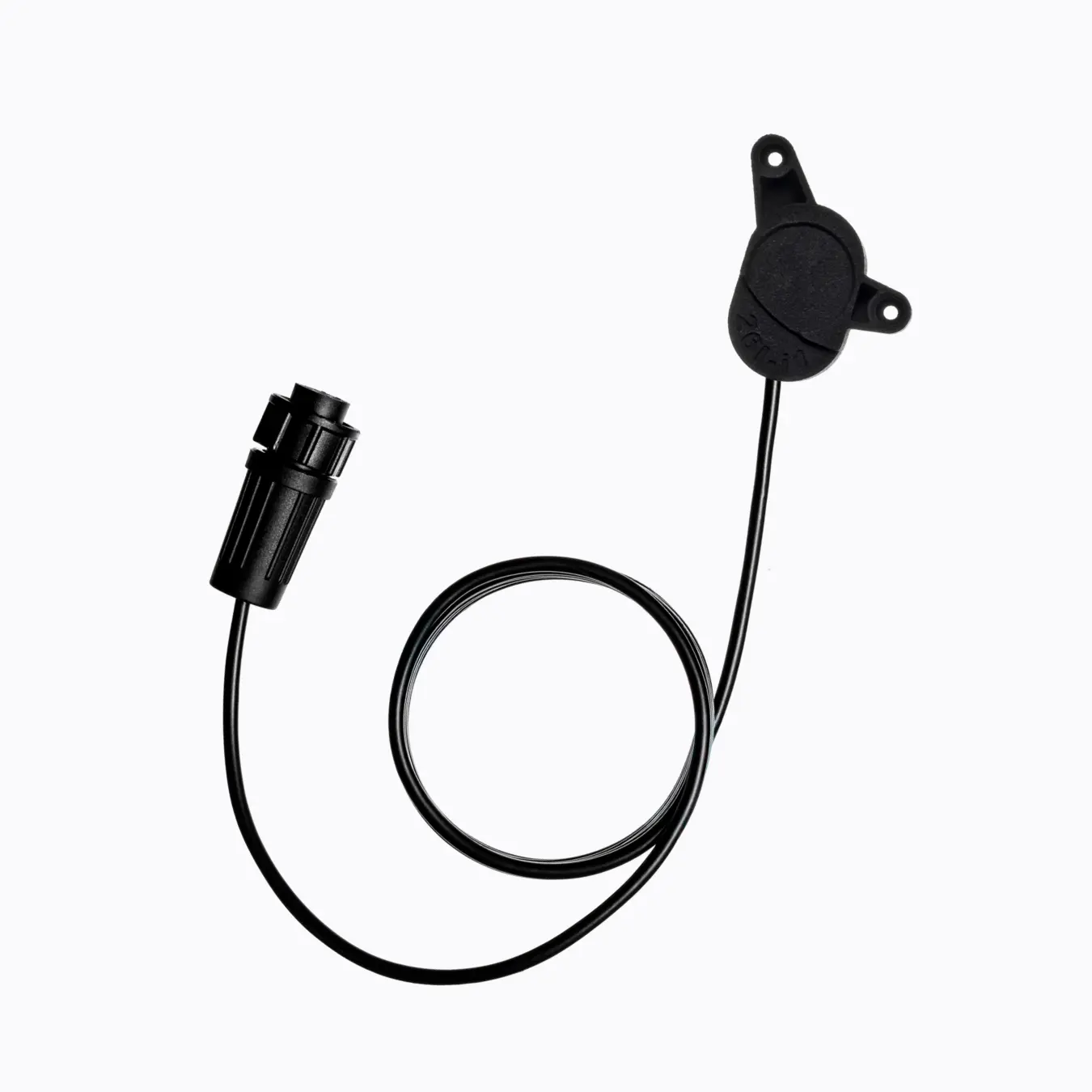

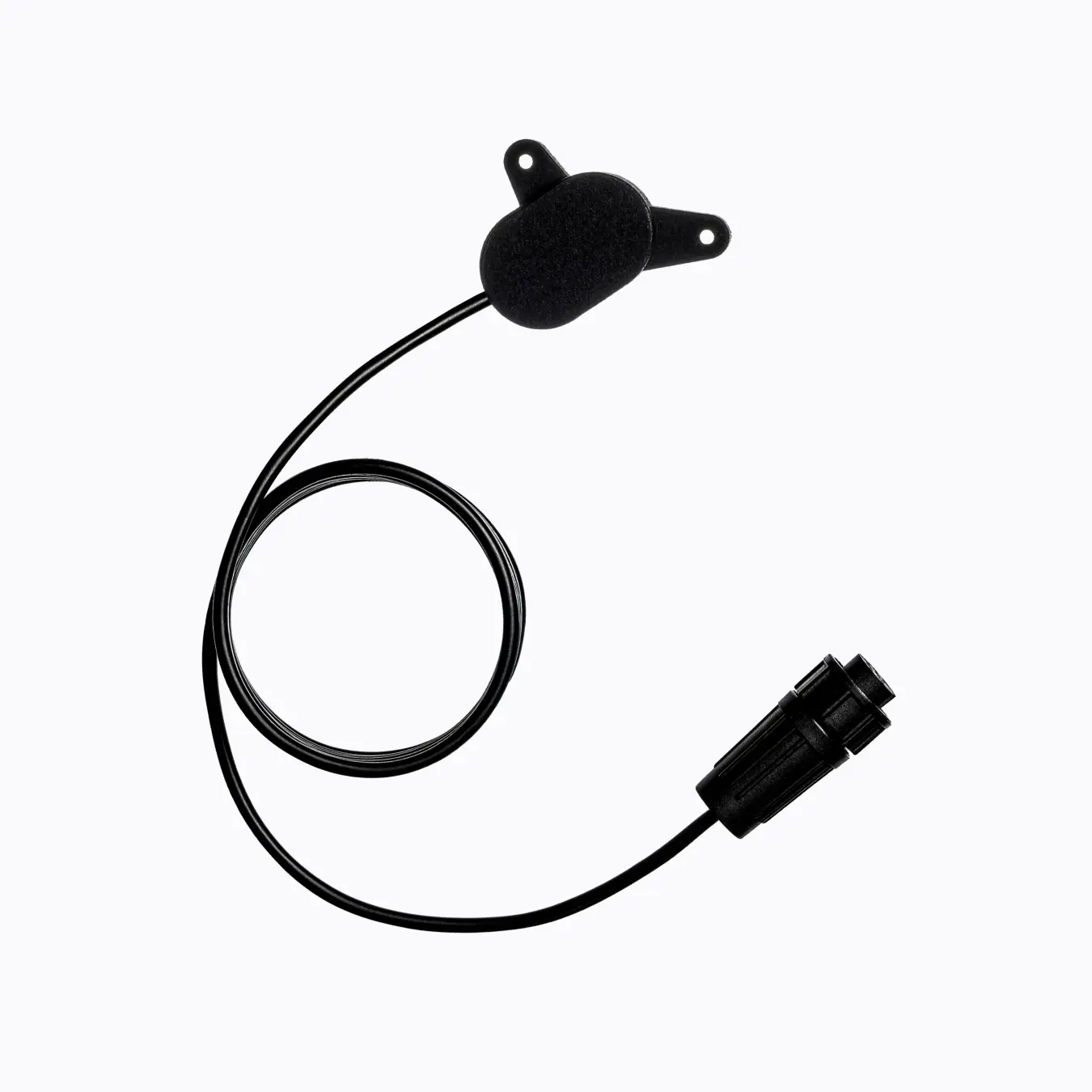

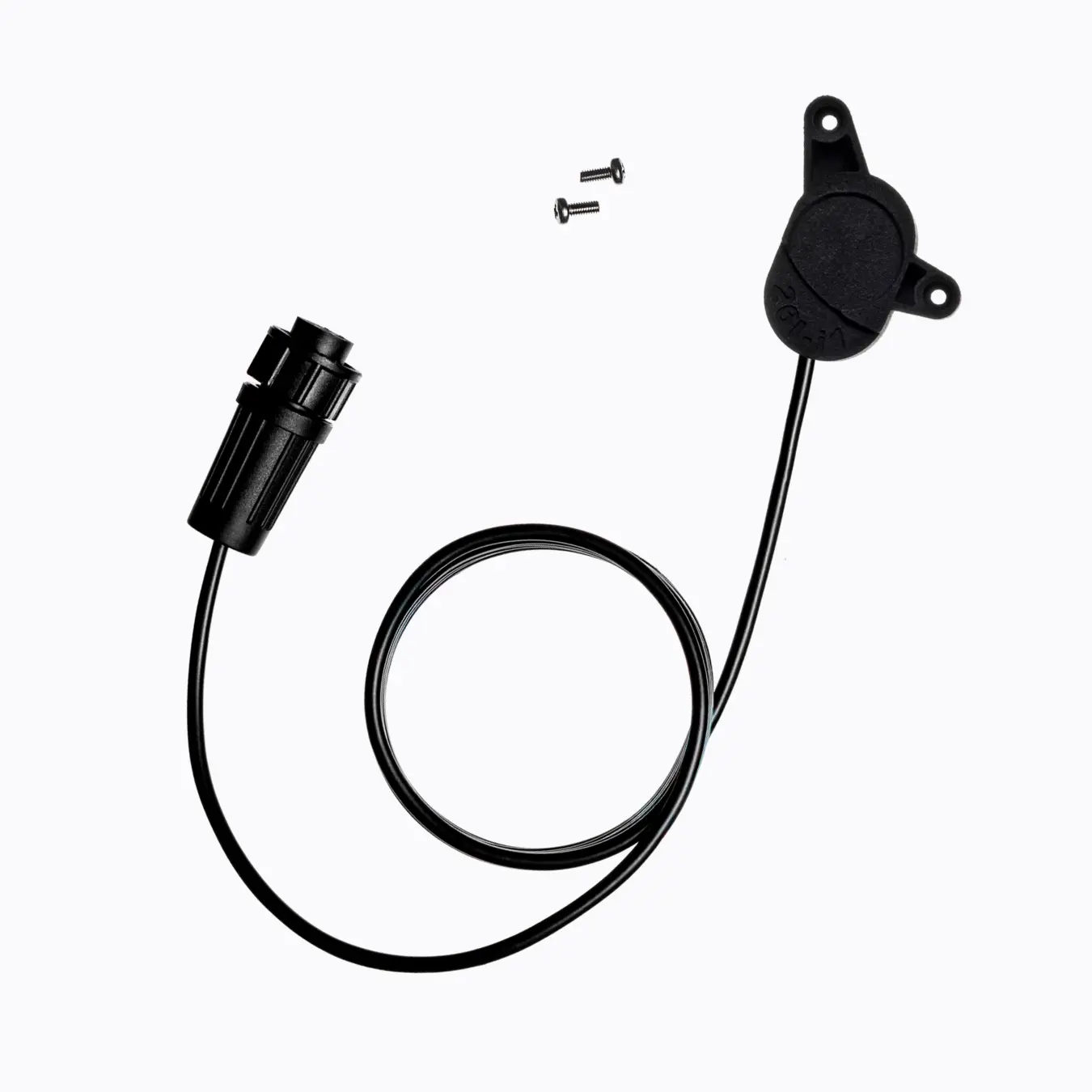

Smart external connection sensor for Sensus water meters. This inductive sensor was created to transfer data from analog water meters to the Jooby OMNI RM LoRaWAN 4PU 200/204/205 EU pulse radio module.

The gadget is attached to the radio module and put on the water meter’s housing. The sensor counts the rotations of the water meter’s measuring hand and sends the information to the pulse radio module.

SKU: Part number: Jooby Aquaris SNS WISE01 100 Category: Tag:

Description

How it works

The data reading procedure begins when the sensor is mounted on the meter’s enclosure and the radio module is turned on.

The sensor sends information to the radio module in the form of counted pulses. Their number correlates to or is a multiple of the number of rotations of the water meter’s hand.

The data is sent across a 1.5-meter-long wire.

The information gathered is saved in the radio module’s non-volatile memory. It is then sent to the resource provider’s server at predetermined intervals over the LoRaWAN network.

The metering system processes the received data and converts it into visible data. The provider may now monitor and evaluate resource utilization in real time.



Sensor Specifications

  • Sensor model – Jooby Aquaris SNS WISE01 100
  • Water meter model – Sensus
    C620 020
    (L165 Q3 4,0 R160 M UA)
  • Pulse coefficient – 1 pulse per 1 liter
  • Operating temperature – 1 °C … 60 °C

Additional information

Weight 1 kg
