Description
How it works

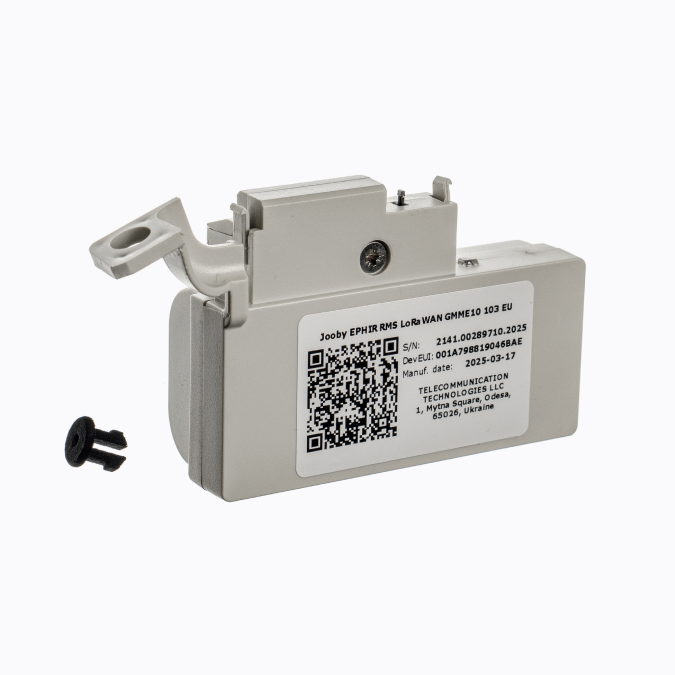

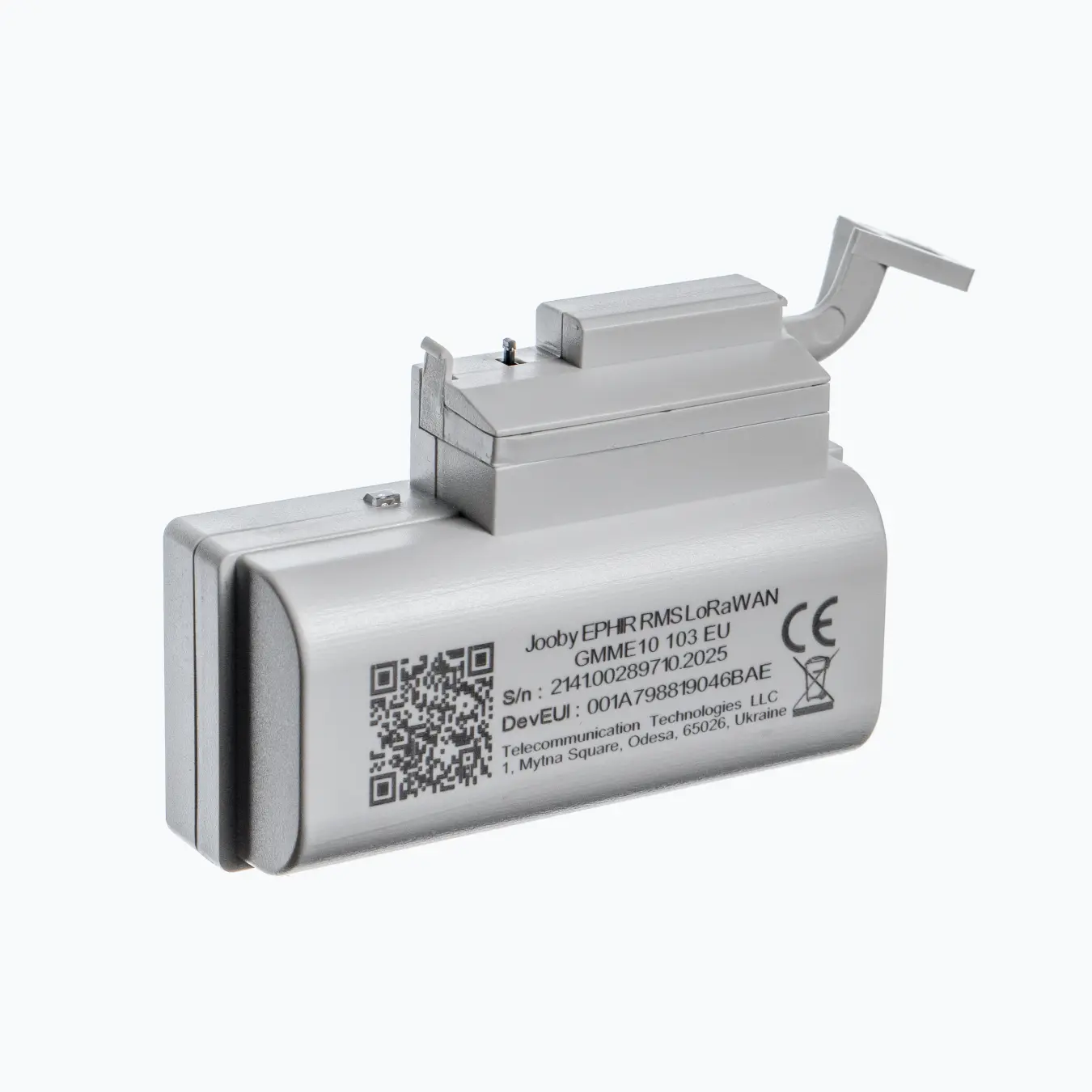

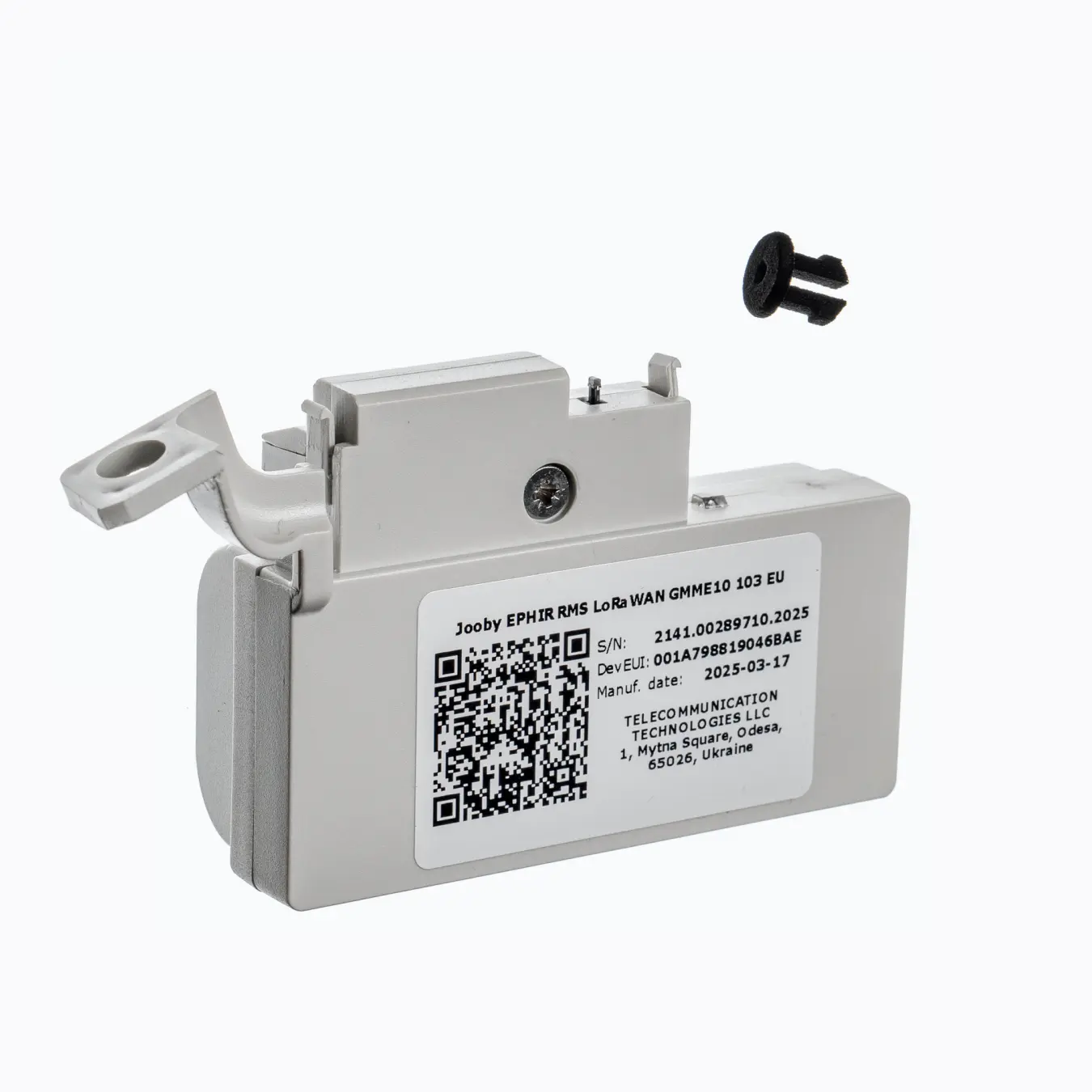

The module is attached to the meter body using standard fasteners and activated using a mobile app. The entire process takes just minutes, and removing the actual meter is unnecessary.
A magnetic sensor detects each rotation of the meter’s dial. The pulses generated by that sensor are then converted to data, and transmitted at preset intervals (from once an hour to once a day) to the supplier’s server over a wireless LoRaWAN network. Therefore, the utility supplier can receive up-to-date meter readings instantaneously.
The module uses non-volatile memory to store the collected data safely and reliably before it is transmitted. The data is retained for two months for hourly transmission intervals, and for daily transmission, it is kept for an entire year.
Continuous, reliable operation is courtesy of an integral high-capacity battery that can power the module for 5-15 years.
