Description
How it works

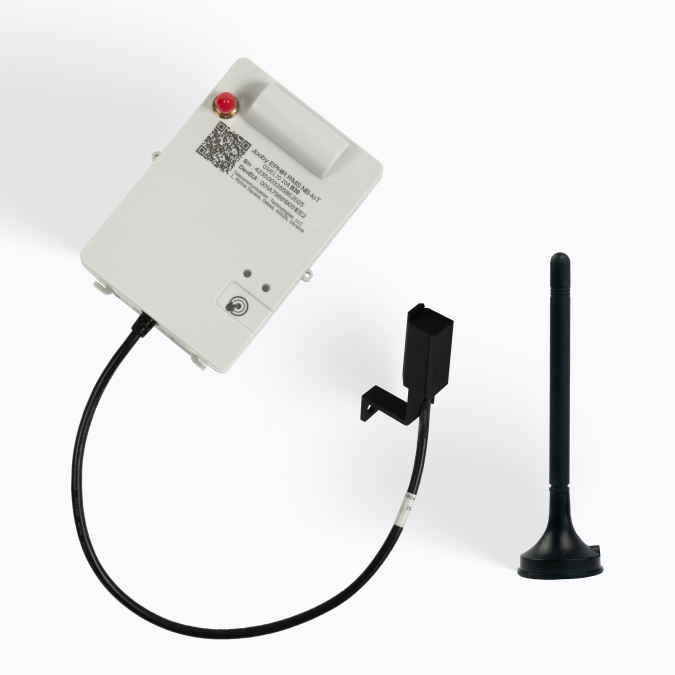

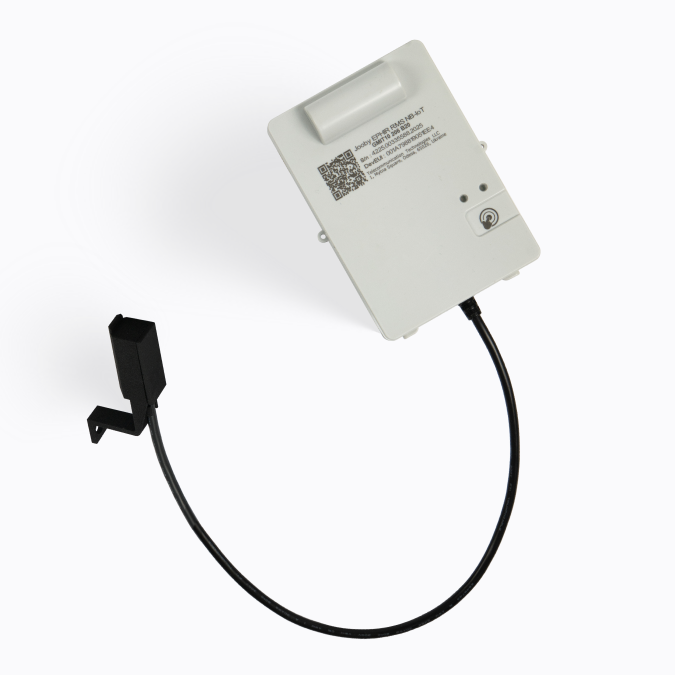

The Jooby radio module is mounted directly onto the gas meter’s housing without requiring meter removal. An external antenna is connected to the radio module, and the module is attached to the meter housing using a built-in magnet. Installation and setup, performed by the service provider, take only a few minutes.
The device operates by registering a full revolution of the meter’s dial, increasing the pulse counter with each completed cycle. Once the data is accumulated, it is transmitted over the NB-IoT network. The transmission frequency can be configured as needed, with the default setting programmed to send updates once per day.
Along with meter readings, the module also provides data on battery status and immediately detects any attempts to remove or interfere with the device using magnetic influence. The built-in electronic log can record 512 events or incidents, storing information for up to 10 years. This ensures long-term reliability and operational efficiency, making the system both durable and highly secure.
