JOOBY AQUARIS SNS WIBA01 100

 26,78

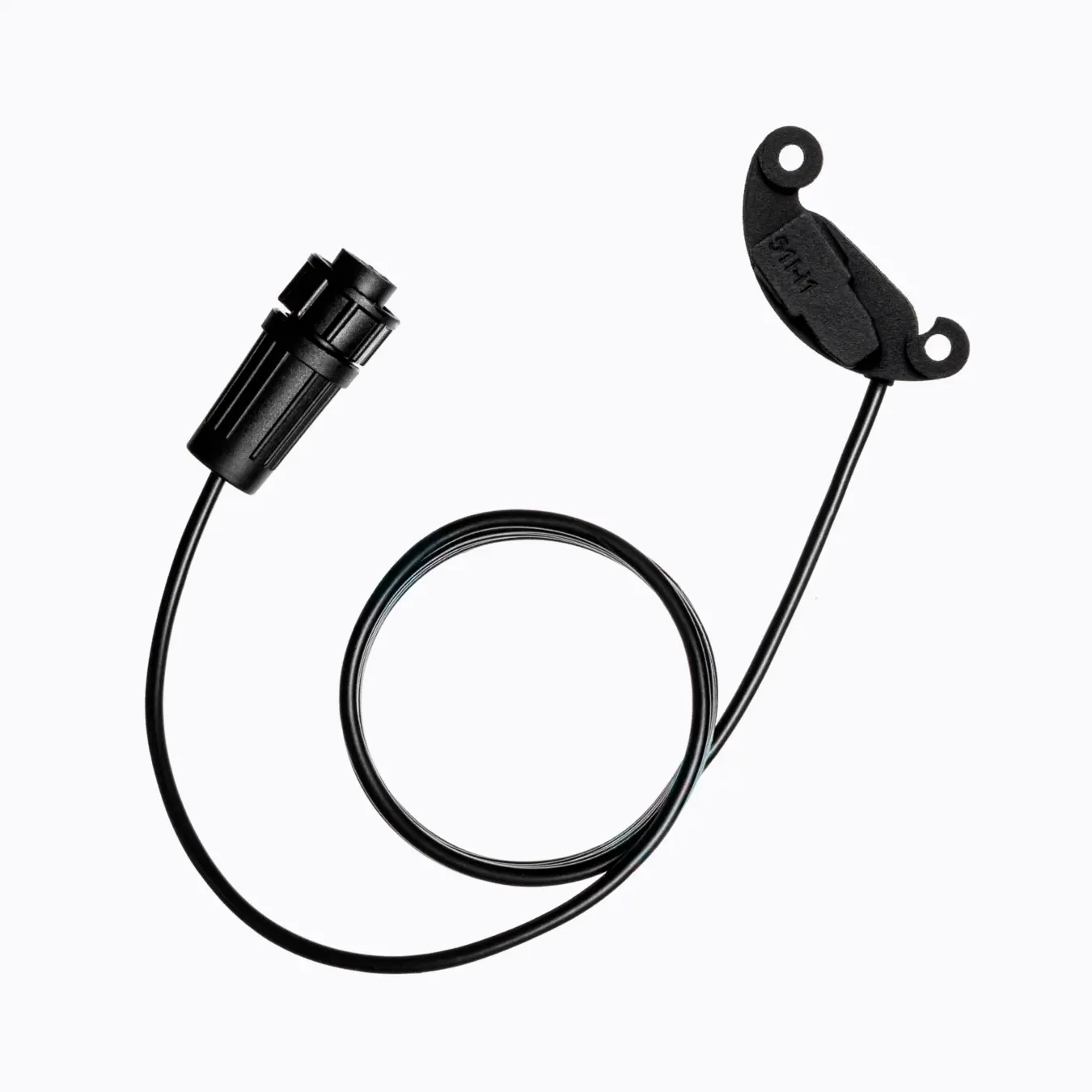

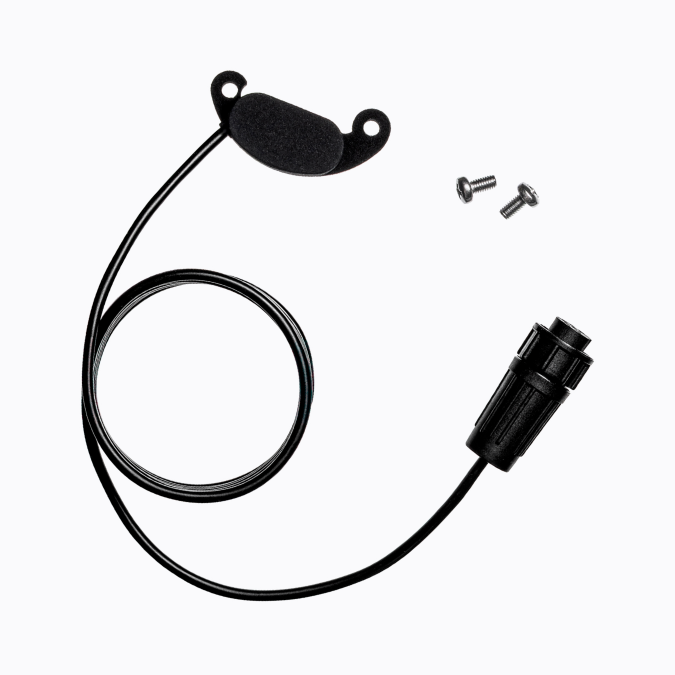

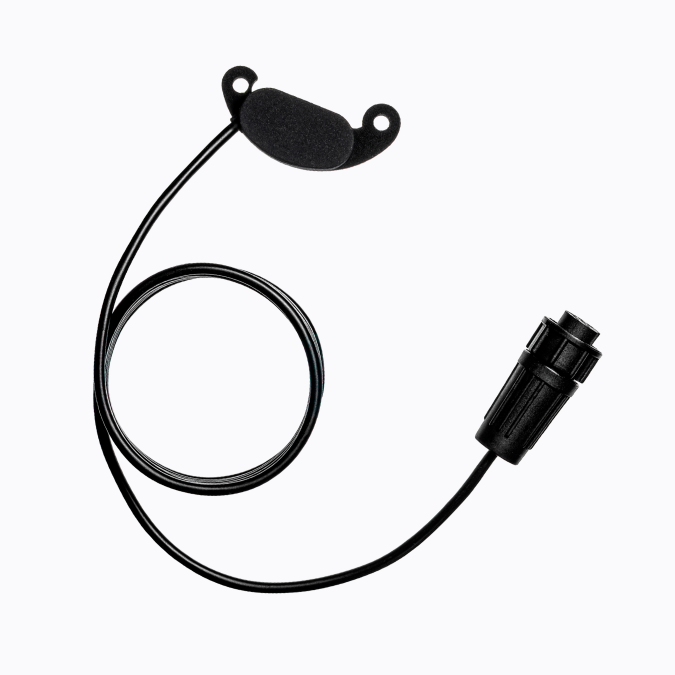

Smart external connection sensor for Baylan water meters. The purpose of this inductive sensor is to provide data to the Jooby OMNI RM LoRaWAN 4PU 200/204/205 EU pulse radio module from analog water meters.

Installed on the water meter’s housing, the gadget is linked to the radio module. Subsequently, the sensor starts counting the meter’s measuring hand rotations and sends the information to the pulse radio module.

Out of stock

SKU: Jooby Aquaris SNS WIBA01 100 Category: Tag:

Description

How it works

Data reading begins when the sensor is mounted on the meter’s housing. The radio module receives this data in the form of counted pulses, the number of which is equal to or more than the number of rotations of the water meter’s hand.

This inductive sensor’s function is to transfer data from analog water meters to the Jooby OMNI RM LoRaWAN 4PU 200/204/205 EU pulse radio module.

The device is mounted on the housing of the water meter and connected to the radio module. The sensor then begins to count the revolutions of the meter’s measuring hand and transmits the data to the pulse radio module.

When the sensor is installed on the meter’s housing, data reading starts. This data is sent to the radio module as counted pulses, the quantity of which is equal to or more than the water meter’s hand’s total revolutions.

Sensor Specifications

  • Sensor model – Jooby Aquaris SNS WIBA01 100
  • Water meter model – Baylan KK-12
  • Pulse coefficient – 1 pulse per 100 liter
  • Operating temperature – 1 °C … 60 °C

Additional information

Weight 1 kg
