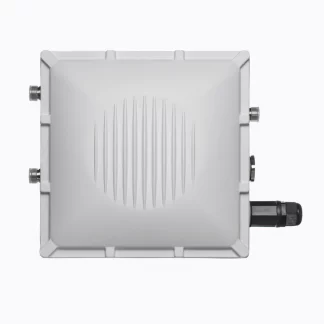

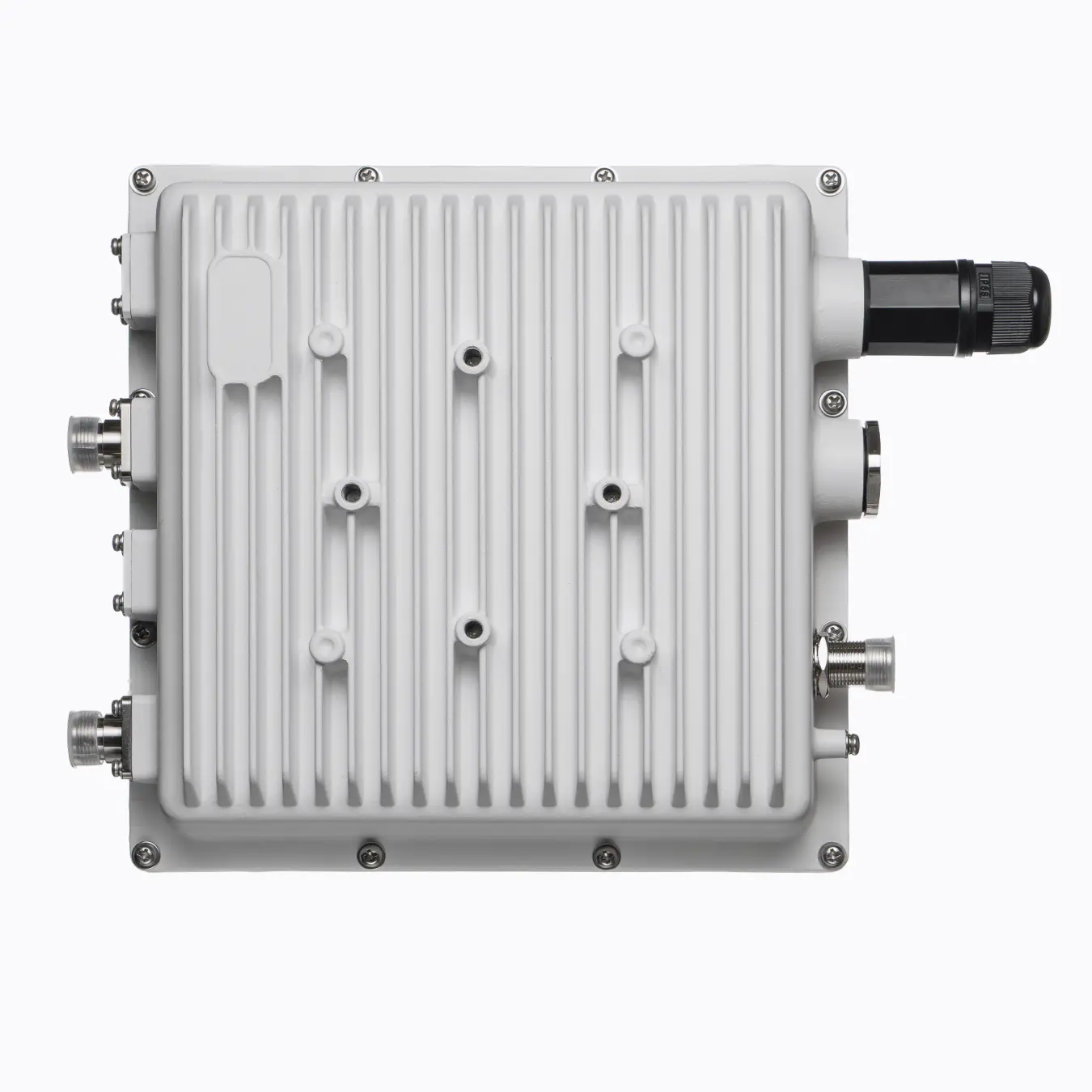

Jooby Outdoor Gateway LoRaWAN 400 EU

Description

Gateway Specifications

Computer Component

• Arm Cortex-A7
• DDR3 RAM 512 MB
• 8 GB eMMc (optional 16 GB eMMc)

LoRaWAN

• Module: SX1302 or SX1303 mini PCIe card
• Channels: Up to 8 channels
• RX Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps
• TX Power: 22 dBm (max.)
• Frequency: EU868, US915
  • On request: AS923, AU915, KR920, IN865

LTE

• Supports Quectel EG915N
  • LTE-FDD: B1/B3/B7/B8/B20
  • GSM: EGSM900/DCS1800

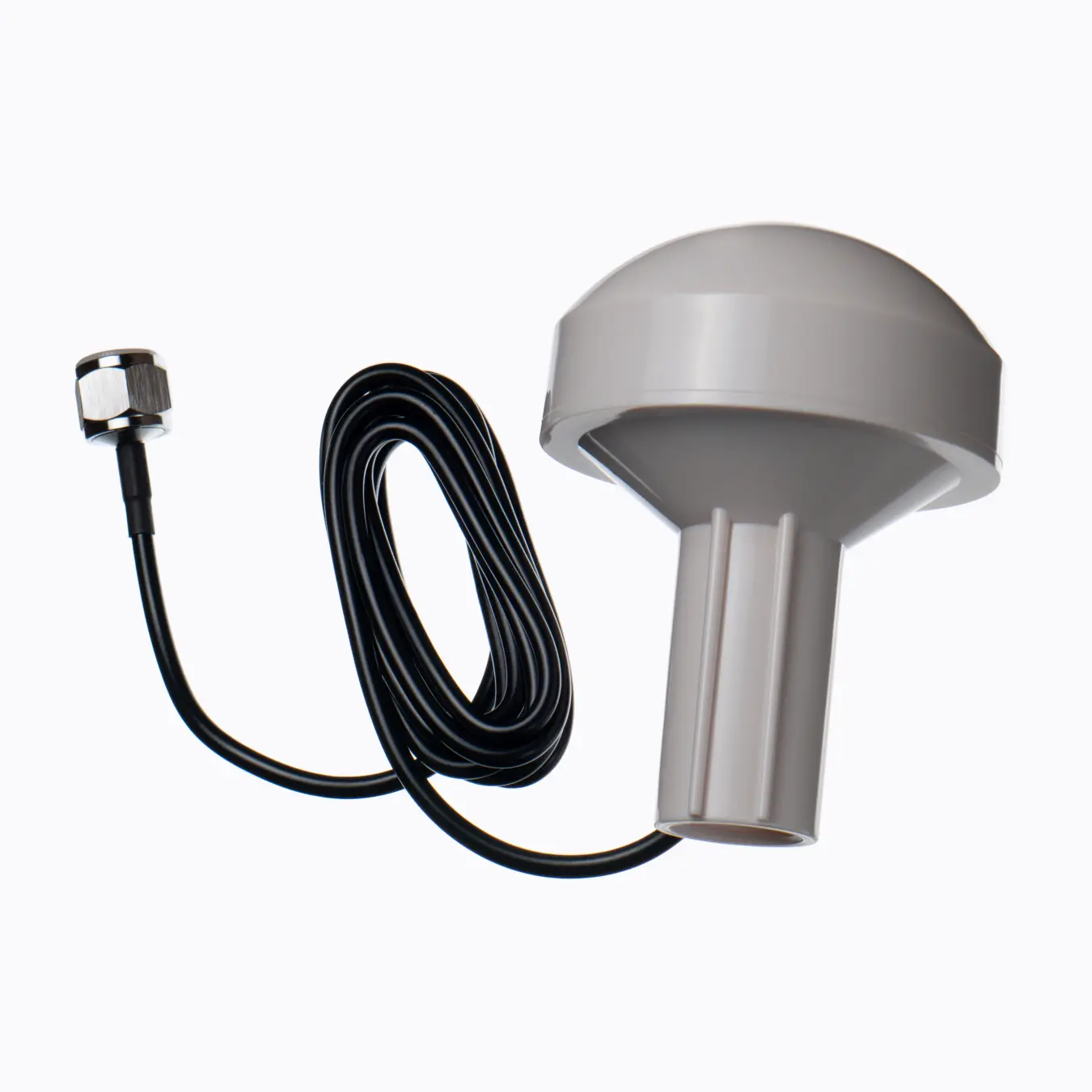

GNSS

• Integrated Module into the LTE-module EG915N

Power Supply

• PoE (IEEE 802.3af/at-compliant) — 42~57 A DC

Power Consumption

• 10 W (max.)

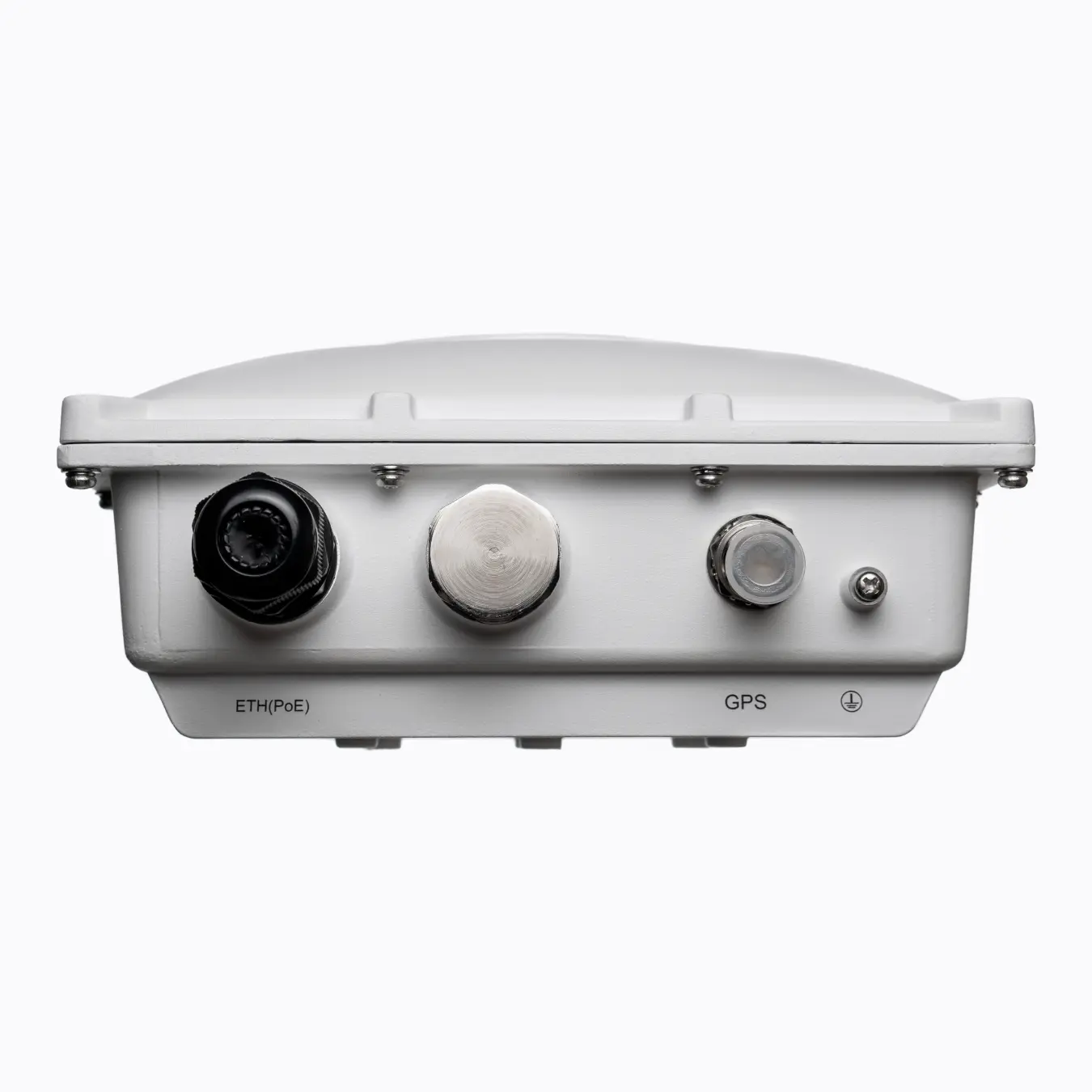

Ethernet

• RJ45 (10/100 Mbps) with surge protection and lightning protection

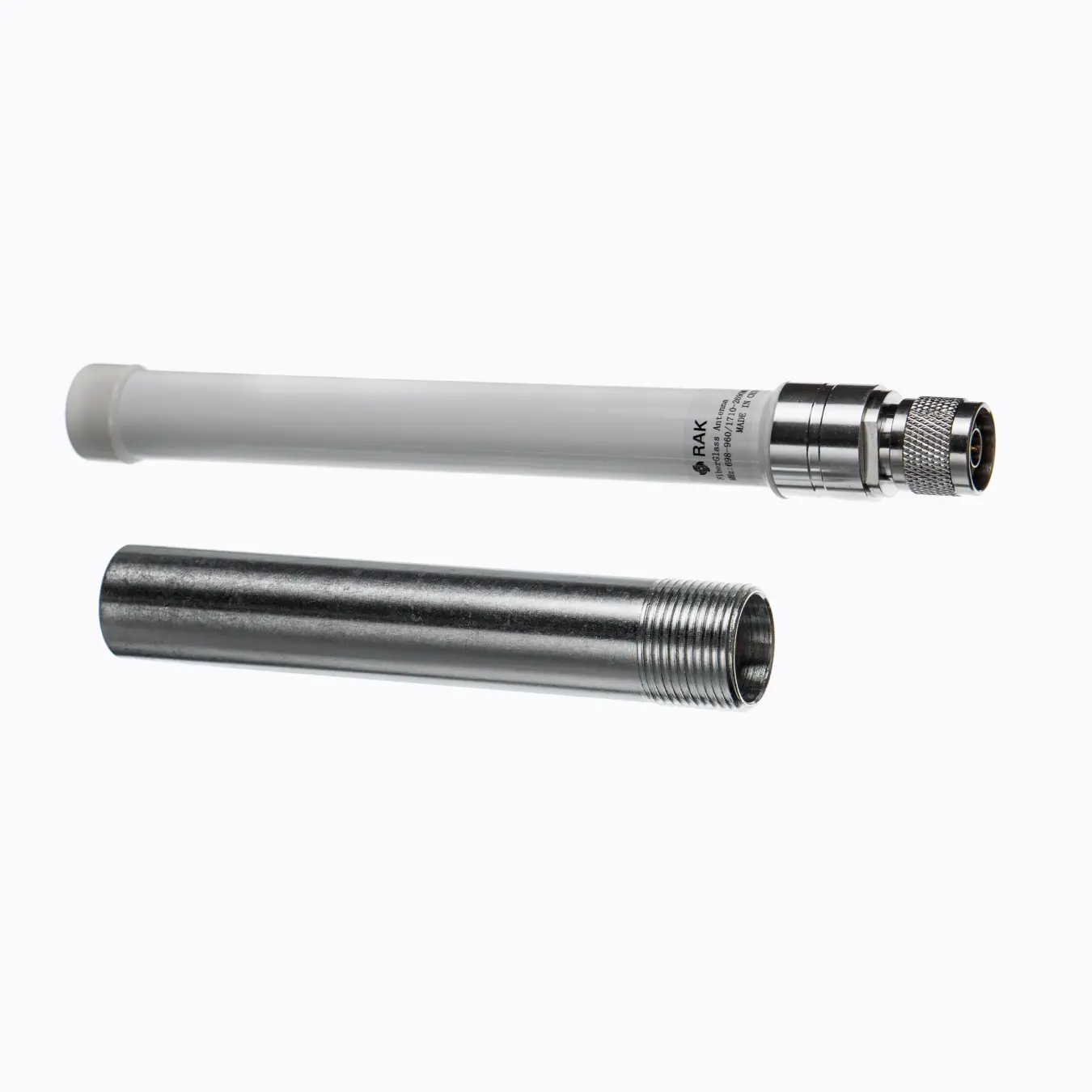

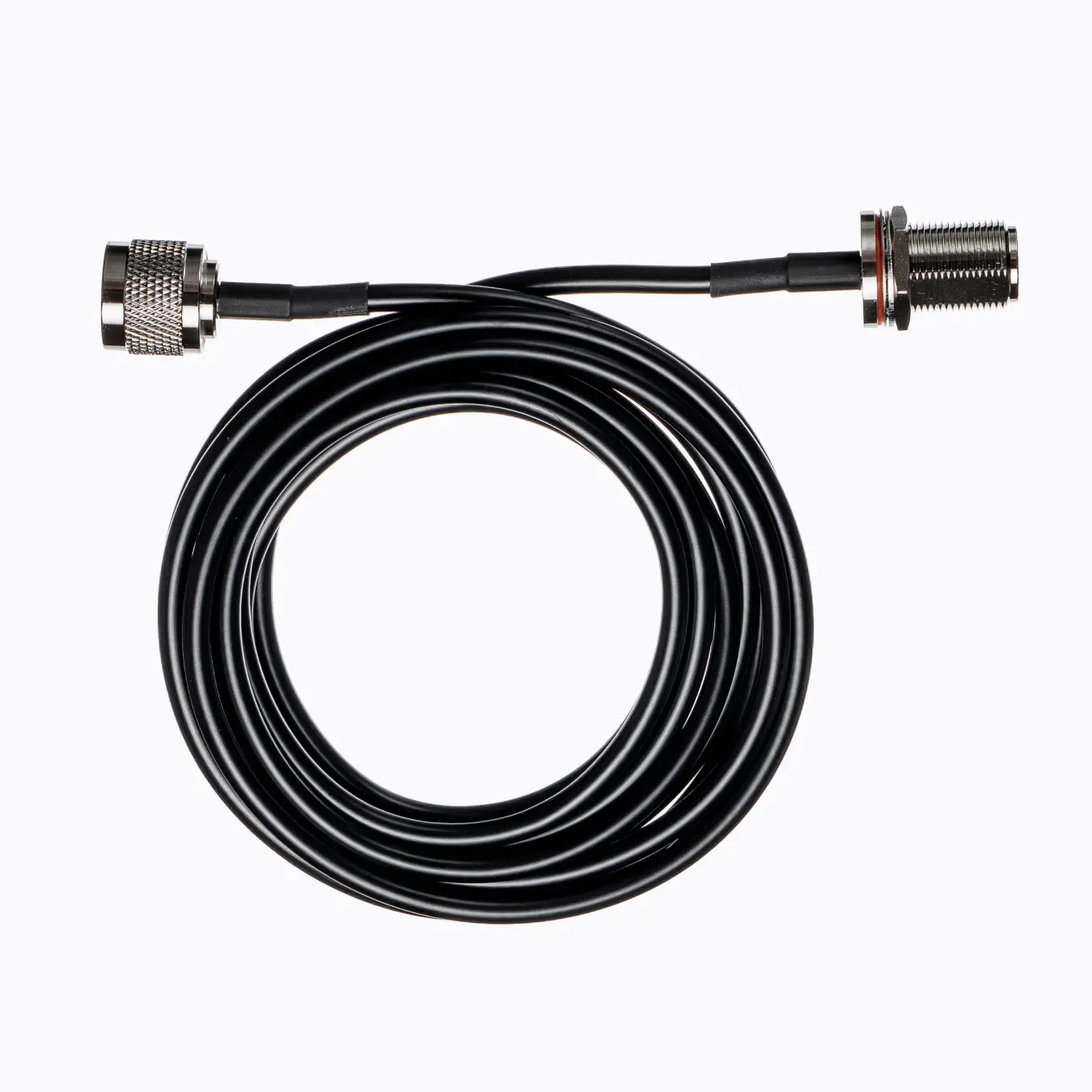

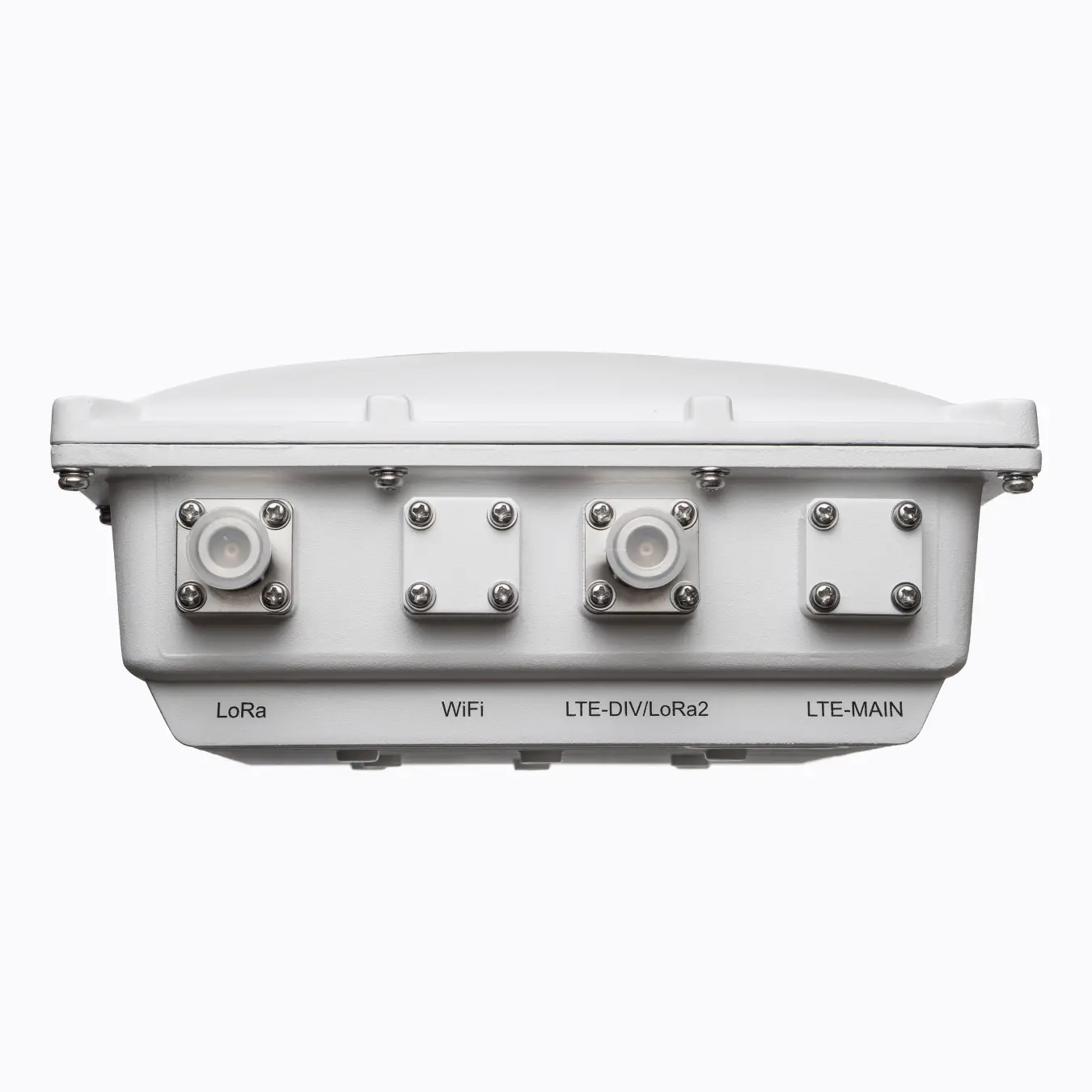

Antenna

• 3 N-type connectors

Protection Degree

• IP67

Enclosure Material

• Aluminum

Weight

• Approximately 2.3 kg

Dimensions

• 295 mm x 220 mm x 105 mm

Operating Temperature

• -40˚C to +60˚C

Storage Temperature

• -40˚C to +85˚C

Operating Humidity

• 0% to 95% (non-condensing)

Storage Humidity

• 0% to 95% (non-condensing)

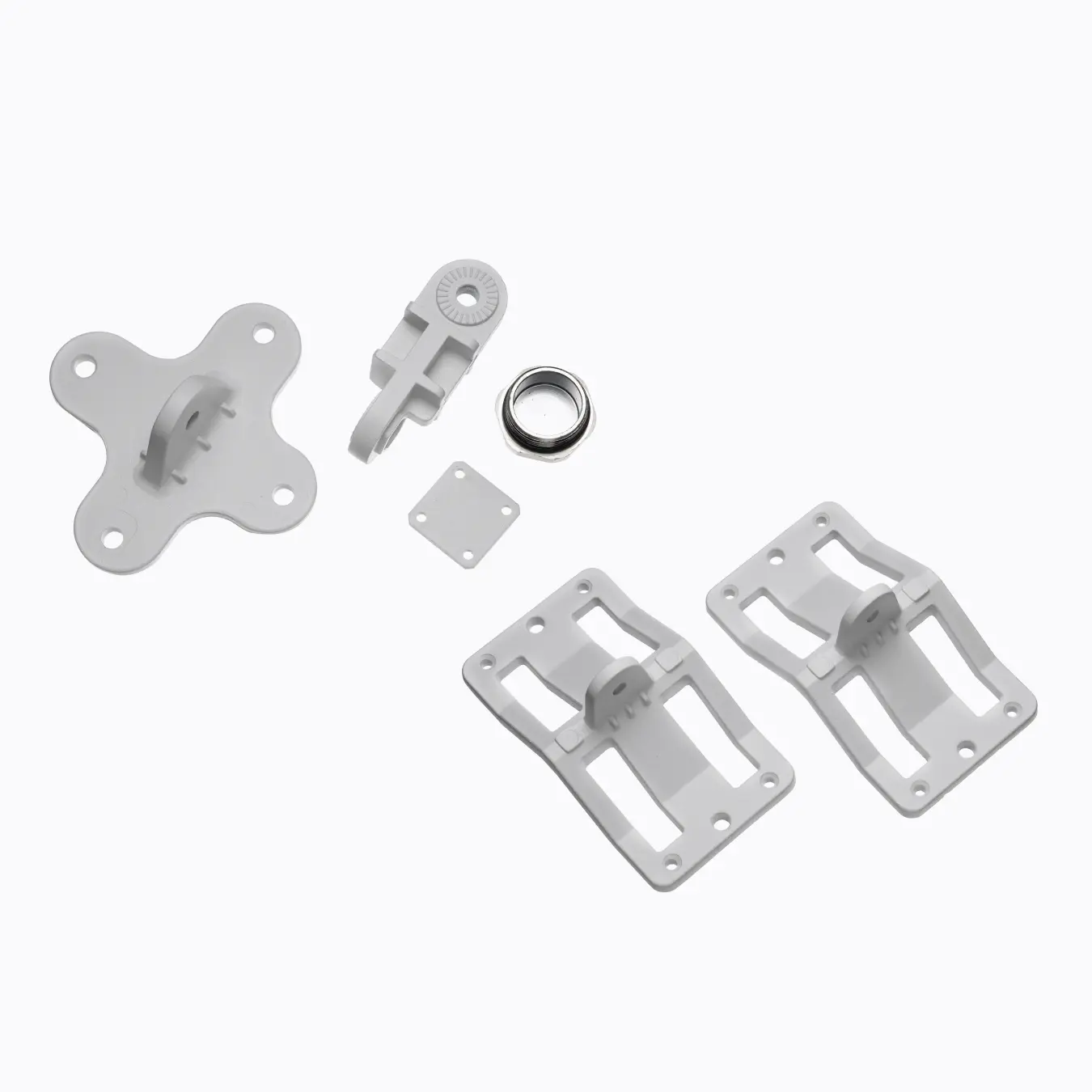

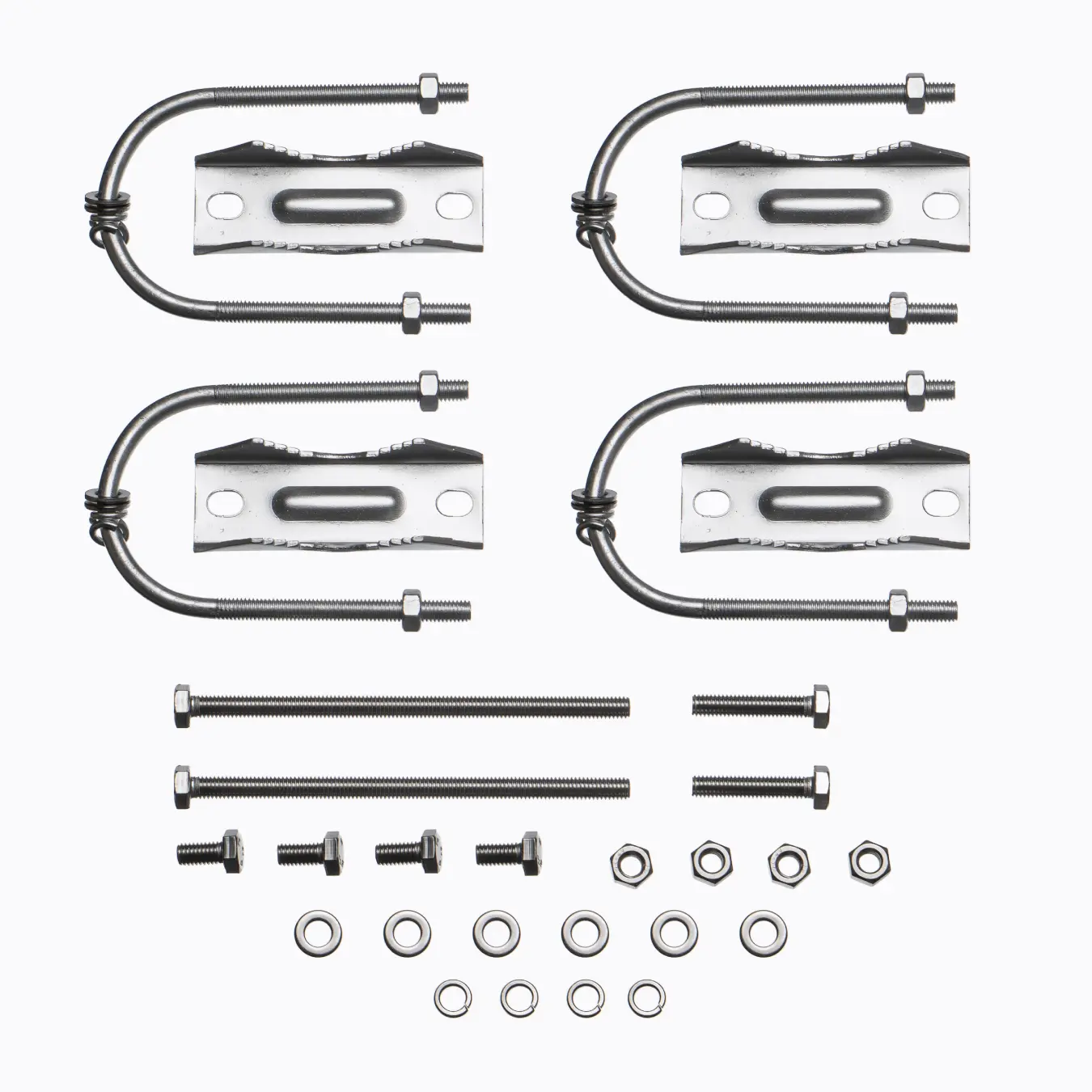

Installation Method

• Pole or wall mounting

Radio Frequency Specifications

LoRaWAN

• Operating Frequency:
  • EU868, US915
  • On request: AS923, AU915, KR920, IN865
• Transmit Power: 22 dBm (max.)
• Receiver Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps

How it works

Cellular networks rely on base stations for their operation, which are strategically placed near sensor networks. For instance, a gateway may be situated near residential areas equipped with radio modules for monitoring electricity, gas, and water usage. These radio modules collect meter data and transmit it to the gateway using the LoRaWAN network. Subsequently, the gateway forwards this data to a server for analysis through LTE networks.
