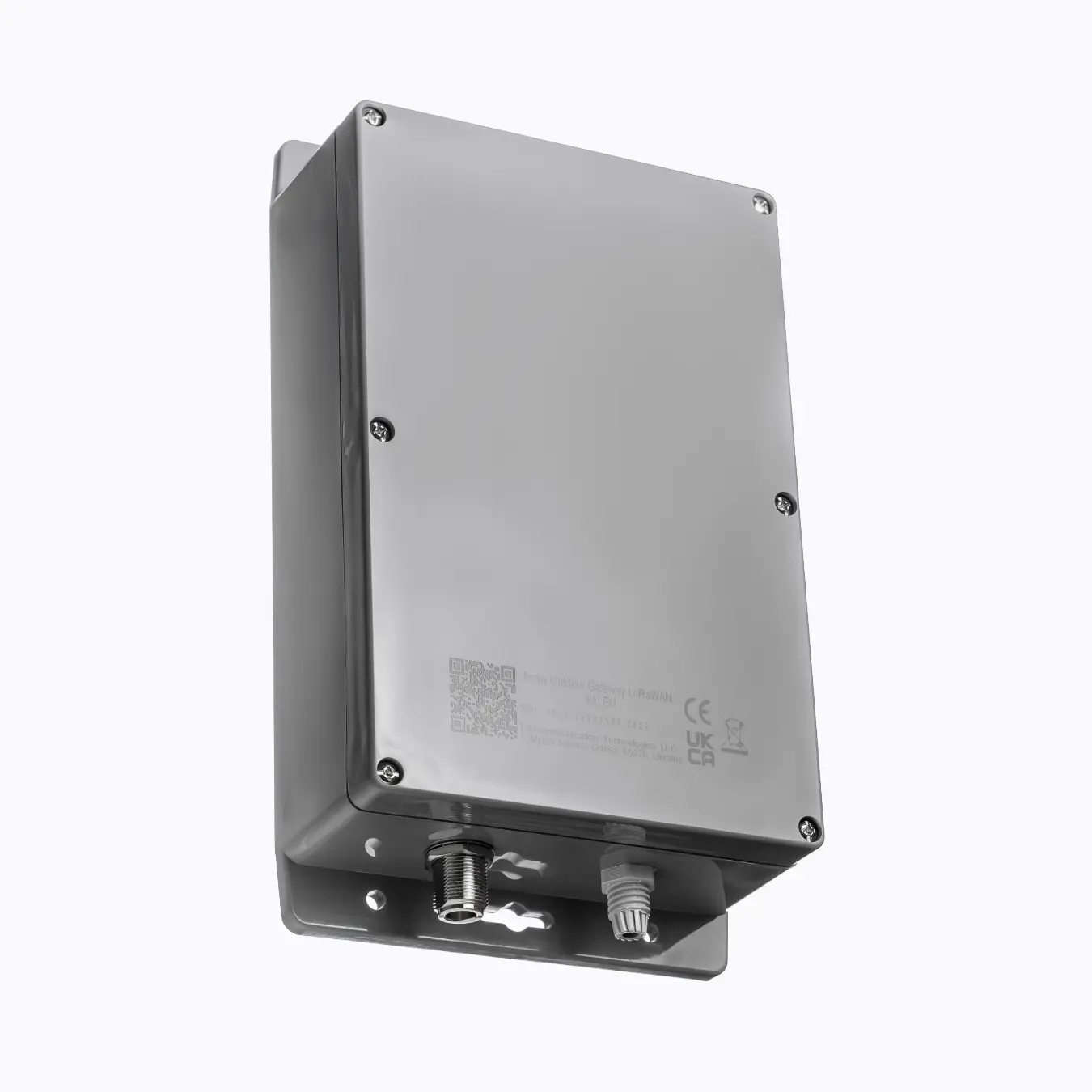

Jooby Outdoor Gateway LoRaWAN 300 EU

Description

Gateway Specifications

Computer Component

• Arm Cortex-A7
• DDR3 RAM 512MB
• 8GB eMMc (optional 16GB eMMc)

LoRaWAN

• Module: SX1302 or SX1303 mini PCIe card
• Channels: Up to 8 channels
• RX Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps
• TX Power: 22 dBm (max.)
• Frequency: EU868, US915
  • On request: AS923, AU915, KR920, IN865

LTE

• Supports Quectel EG915N
  • LTE-FDD: B1/B3/B7/B8/B20
  • GSM: EGSM900/DCS1800

GNSS

• Integrated module into the LTE-module EG915N

Power Supply

• PoE (IEEE 802.3af/at-compliant) — 42~57A DC

Power Consumption

• 10 W (max.)

Ethernet

• RJ45 (10/100Mbps) with surge protection and optional lightning protection

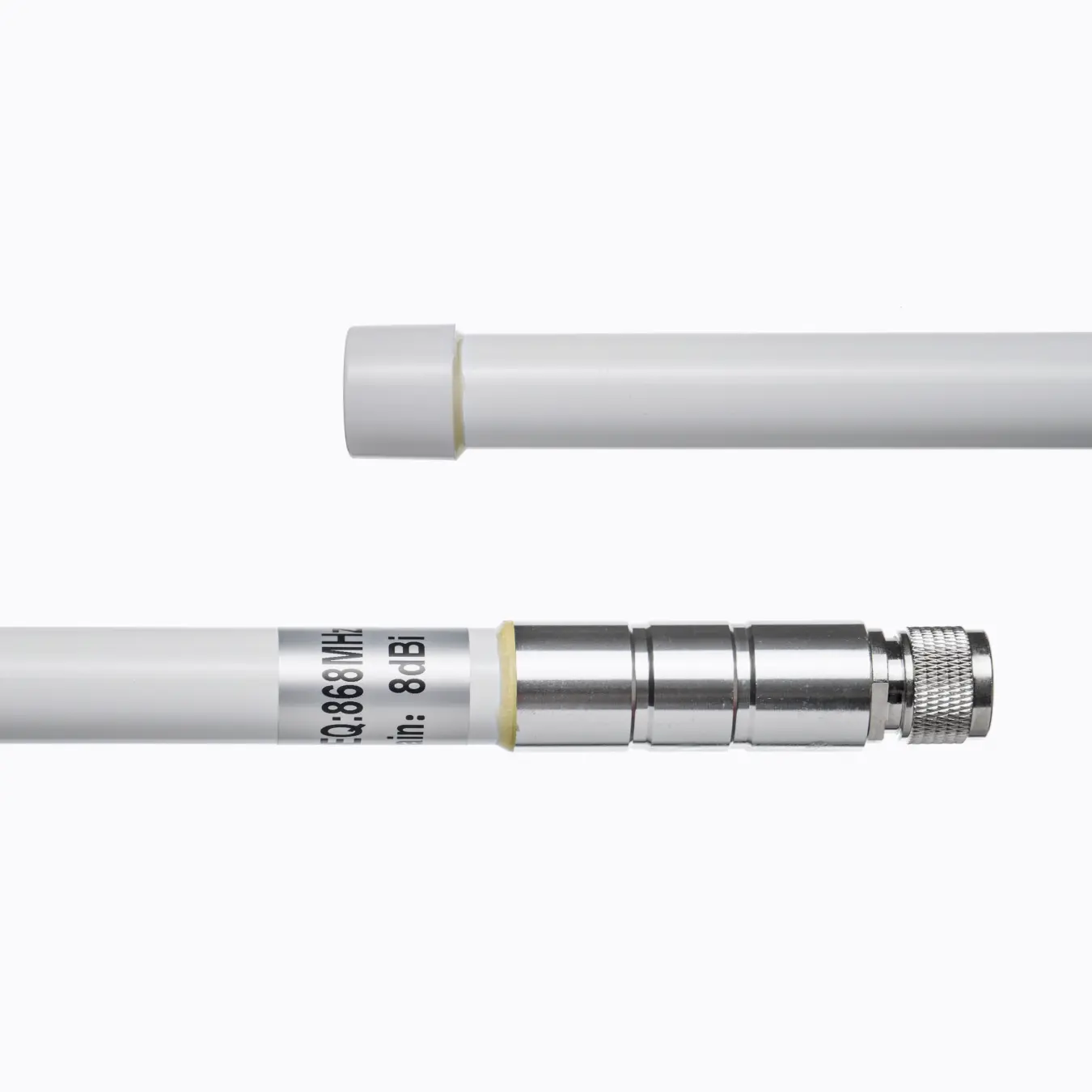

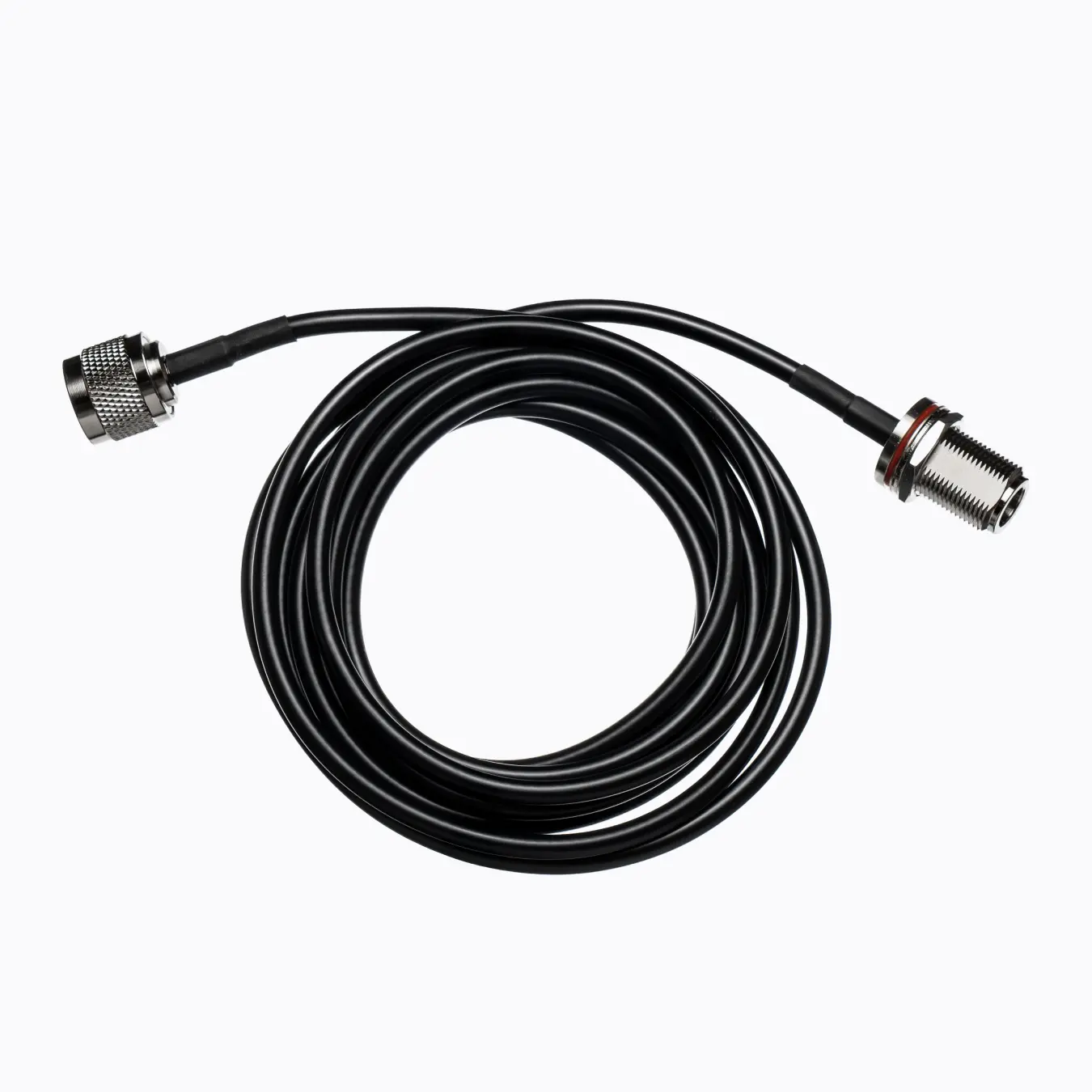

Antenna

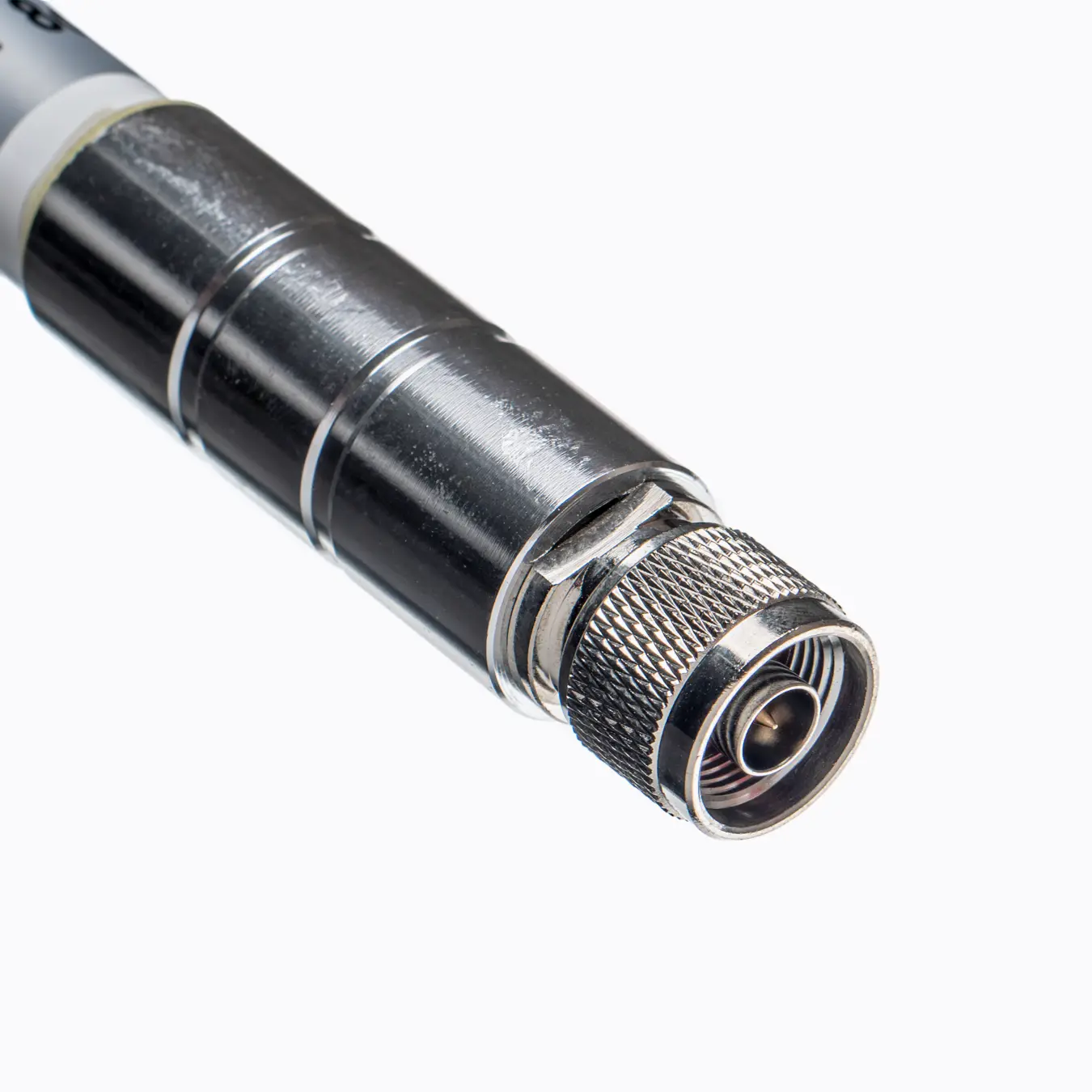

• 1 N-type connector
• Built-in antennas for GNSS and LTE

Protection Degree

• IP67

Enclosure Material

• Plastic HB UL-94

Weight

• Approximately 0.75 kg

Dimensions

• 262 mm x 146 mm x 66 mm

Operating Temperature

• -40˚C to +60˚C

Storage Temperature

• -40˚C to +85˚C

Operating Humidity

• 0% to 95% (non-condensing)

Storage Humidity

• 0% to 95% (non-condensing)

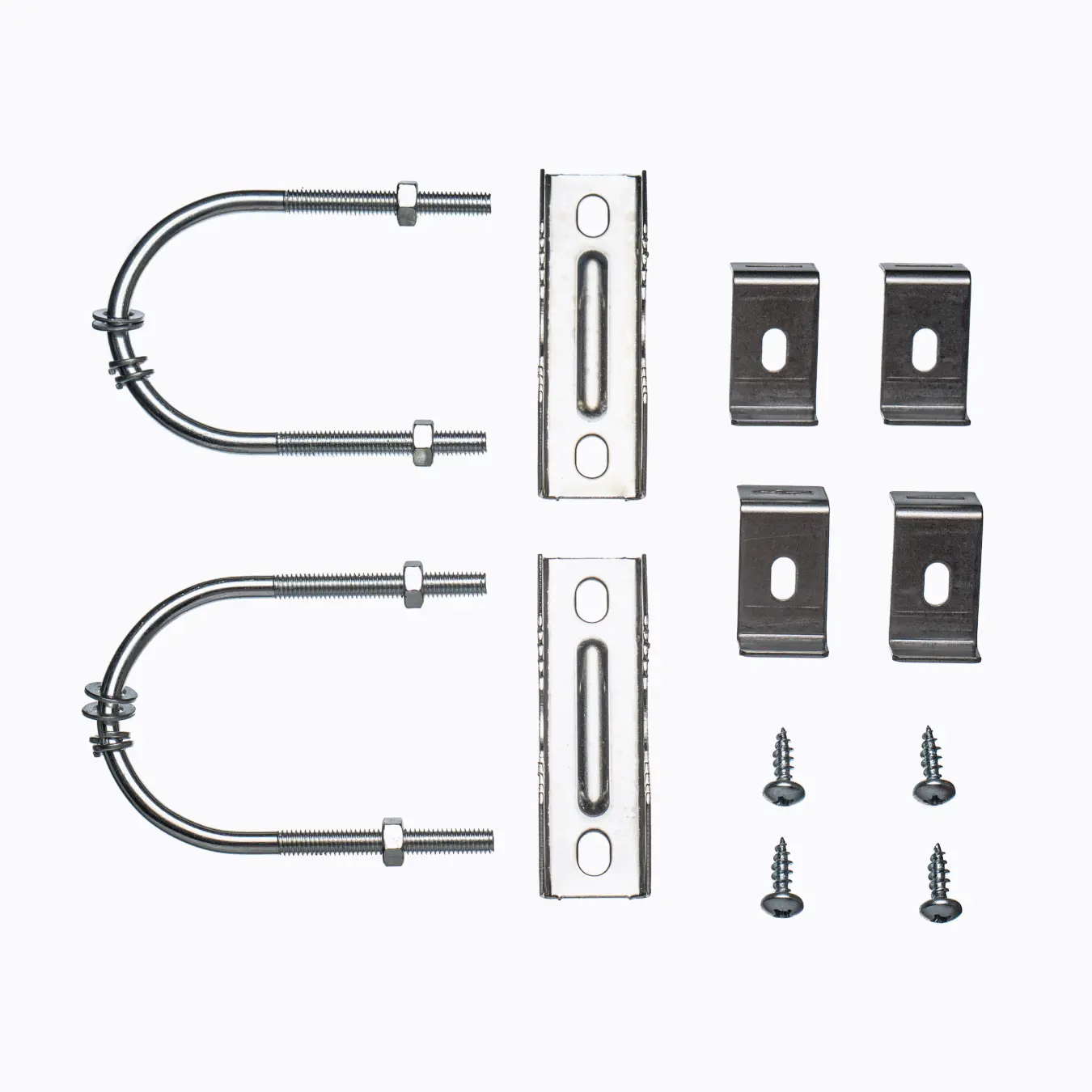

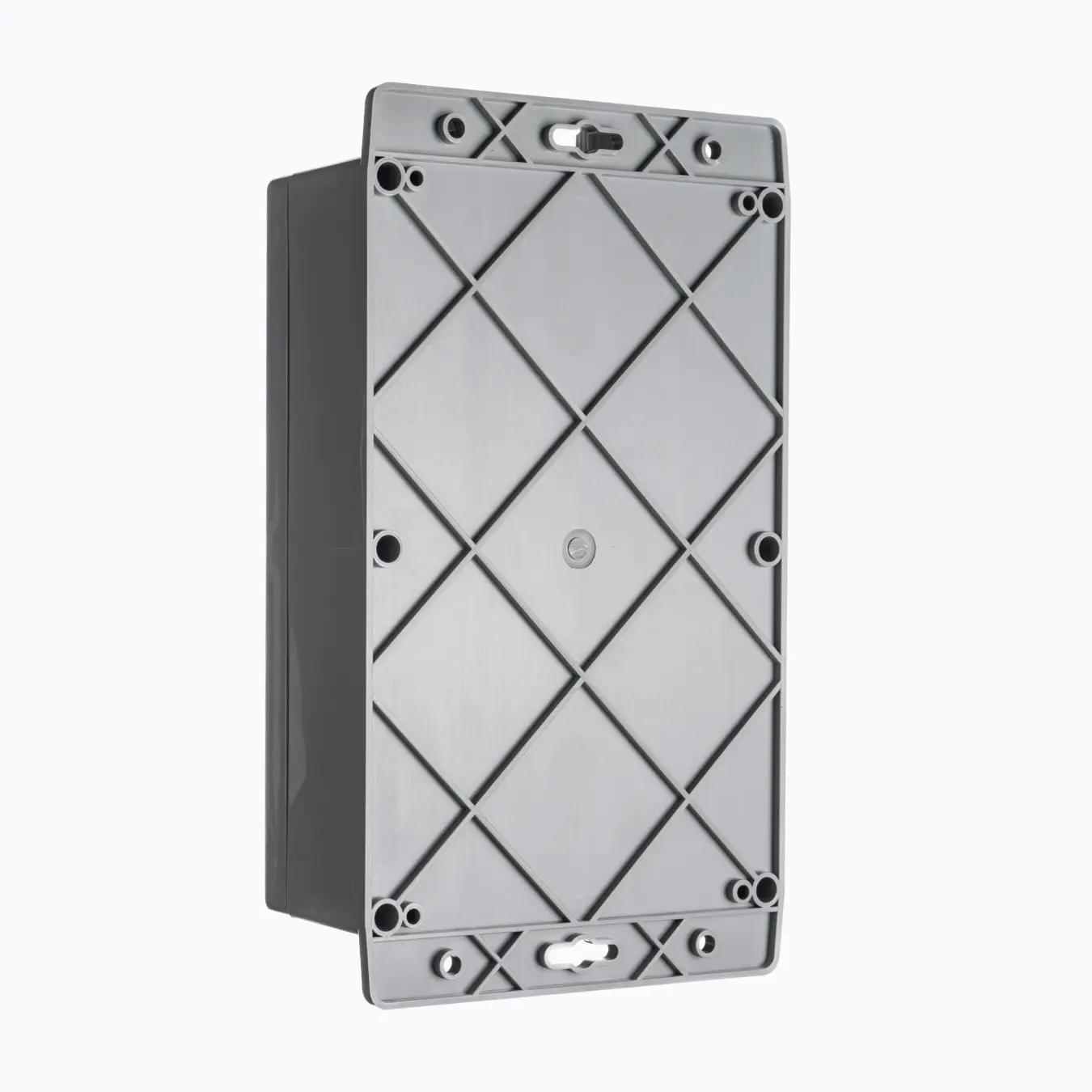

Installation Method

• Pole or wall mounting

Radio Frequency Specifications

LoRaWAN

• Operating Frequency:
  • EU868, US915
  • On request: AS923, AU915, KR920, IN865
• Transmit Power: 22 dBm (max.)
• Receiver Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps

How it works

The gateways function within the coverage area of a cellular network, strategically placed near clusters of radio modules that gather various types of information. For instance, a gateway can be installed near a residential complex where radio modules collect data from resource meters, such as water, gas, and electricity. These radio modules transmit the collected data to the gateway via the LoRaWAN network. The gateway then forwards the received information to a destination server for data processing. Additionally, LAN can be used to transfer data from the gateway to the server.
