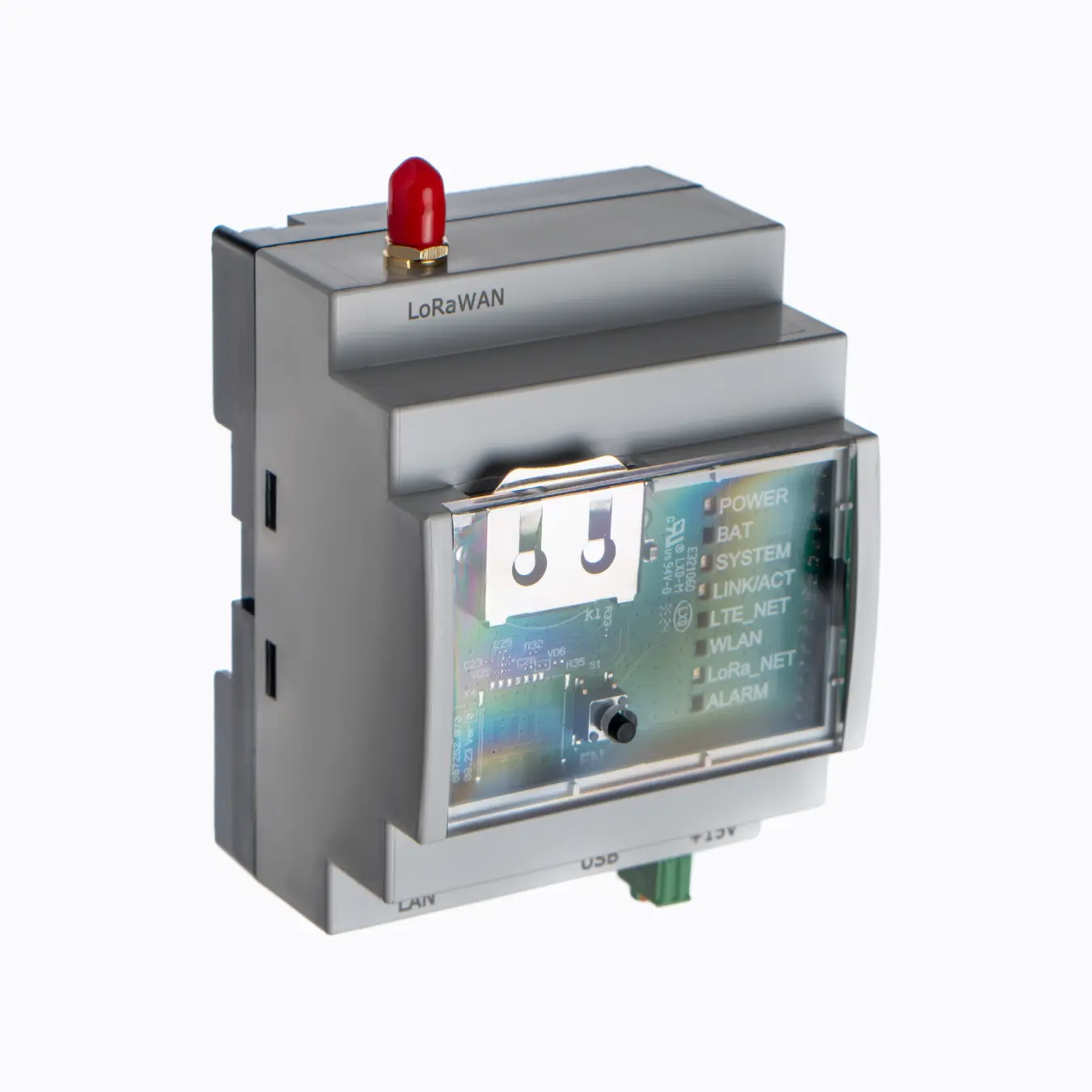

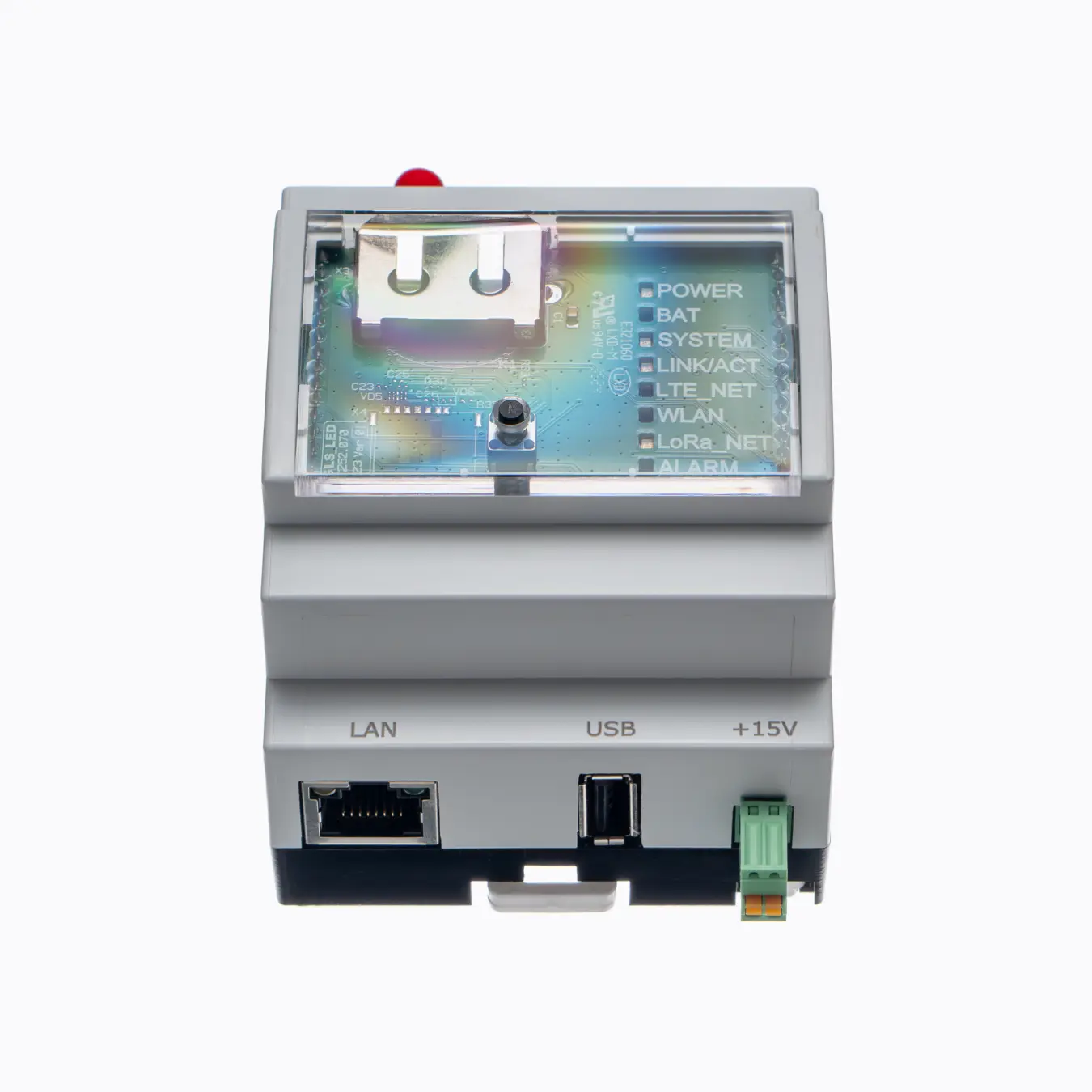

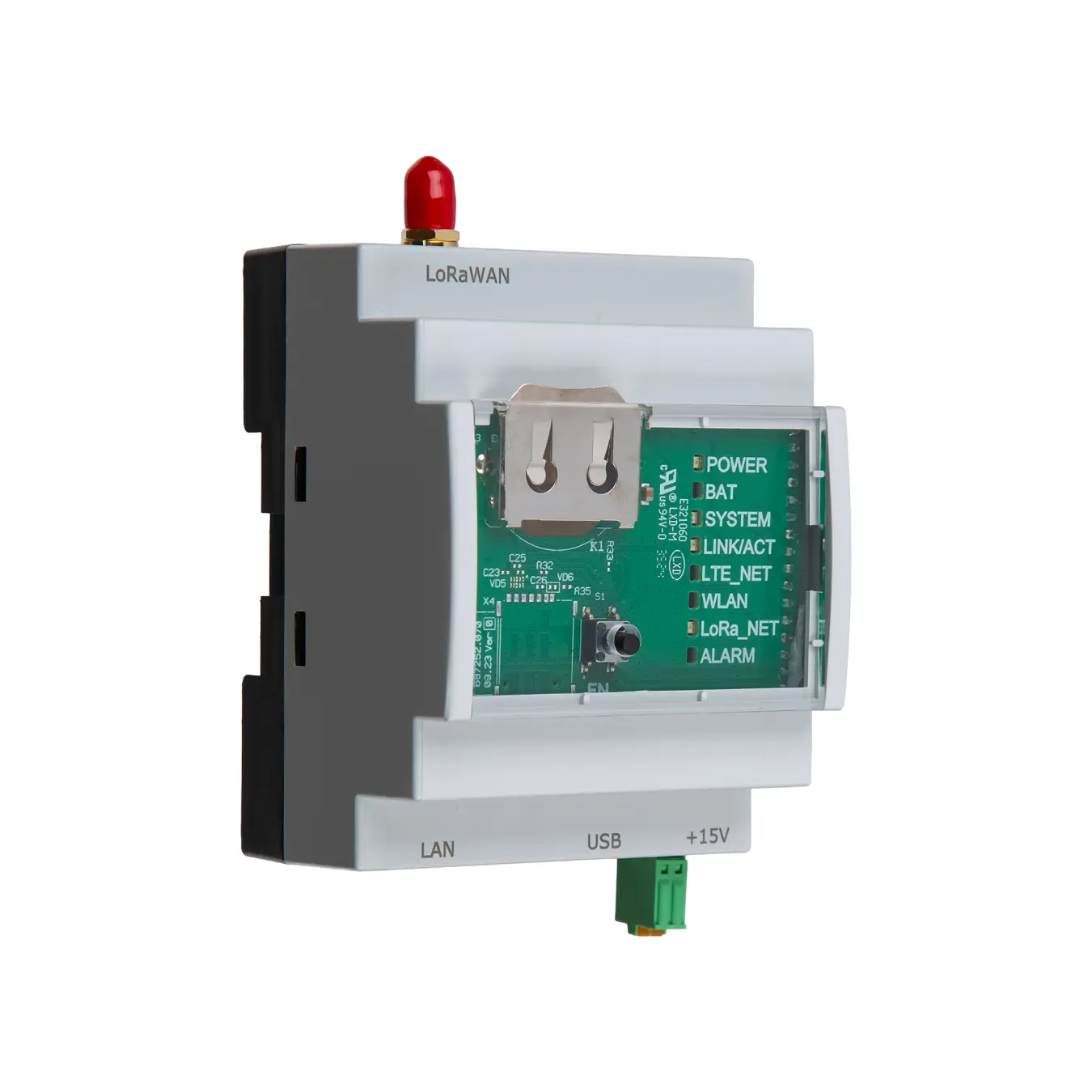

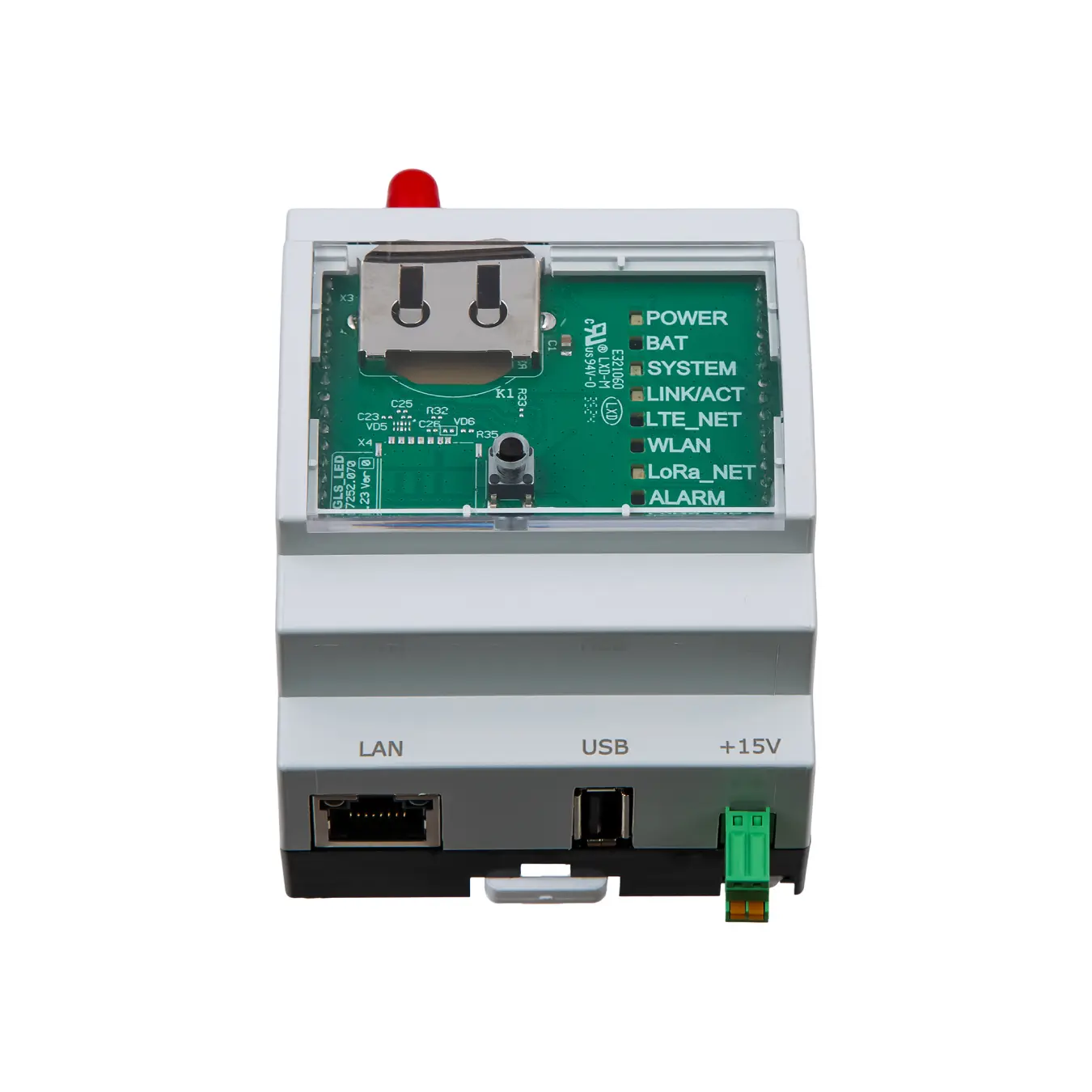

Jooby Indoor Gateway LoRaWAN 500 EU

Description

Gateway Specifications

Computer Component

• Arm Cortex-A7
• DDR3 RAM 512MB
• 8GB eMMc (optional 16GB eMMc)

LoRaWAN

• Module: SX1302 or SX1303 mini PCIe card
• Channels: Up to 8 channels
• RX Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps
• TX Power: 22 dBm (max.)

Power Supply

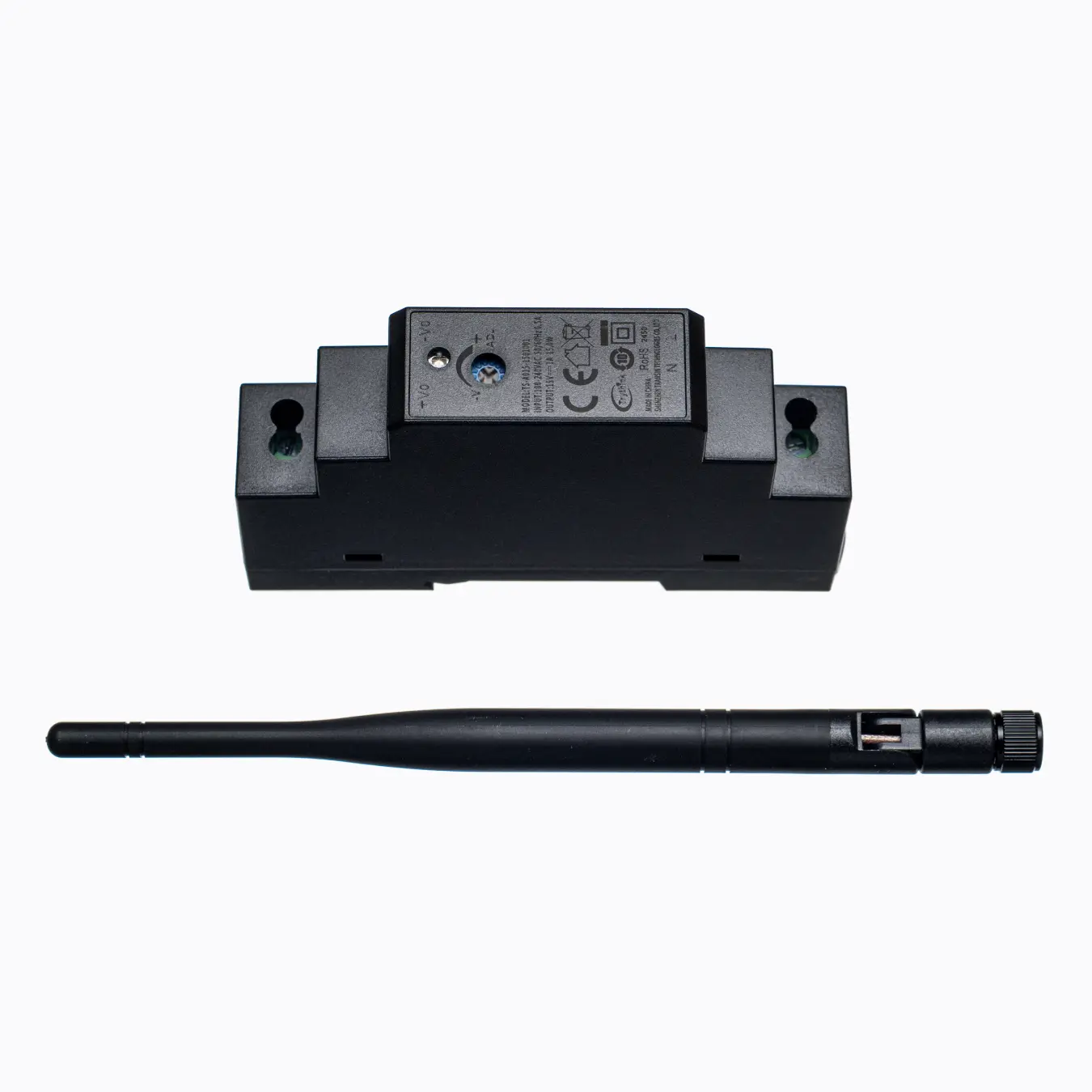

• External power adapter 220V/15V

Power Consumption

• 10 W (max.)

Ethernet

• RJ45 (10/100Mbps) with surge protection and optional lightning protection

Antenna

• SMA type connectors

Enclosure Material

• ABS, V0 UL-94

Weight

• ~ 0.16 kg

Dimensions

• 262 mm x 146 mm x 66 mm

Operating Temperature

• -40˚C to +60˚C

Storage Temperature

• -40˚C to +85˚C

Operating Humidity

• 0% to 95% (non-condensing)

Storage Humidity

• 0% to 95% (non-condensing)

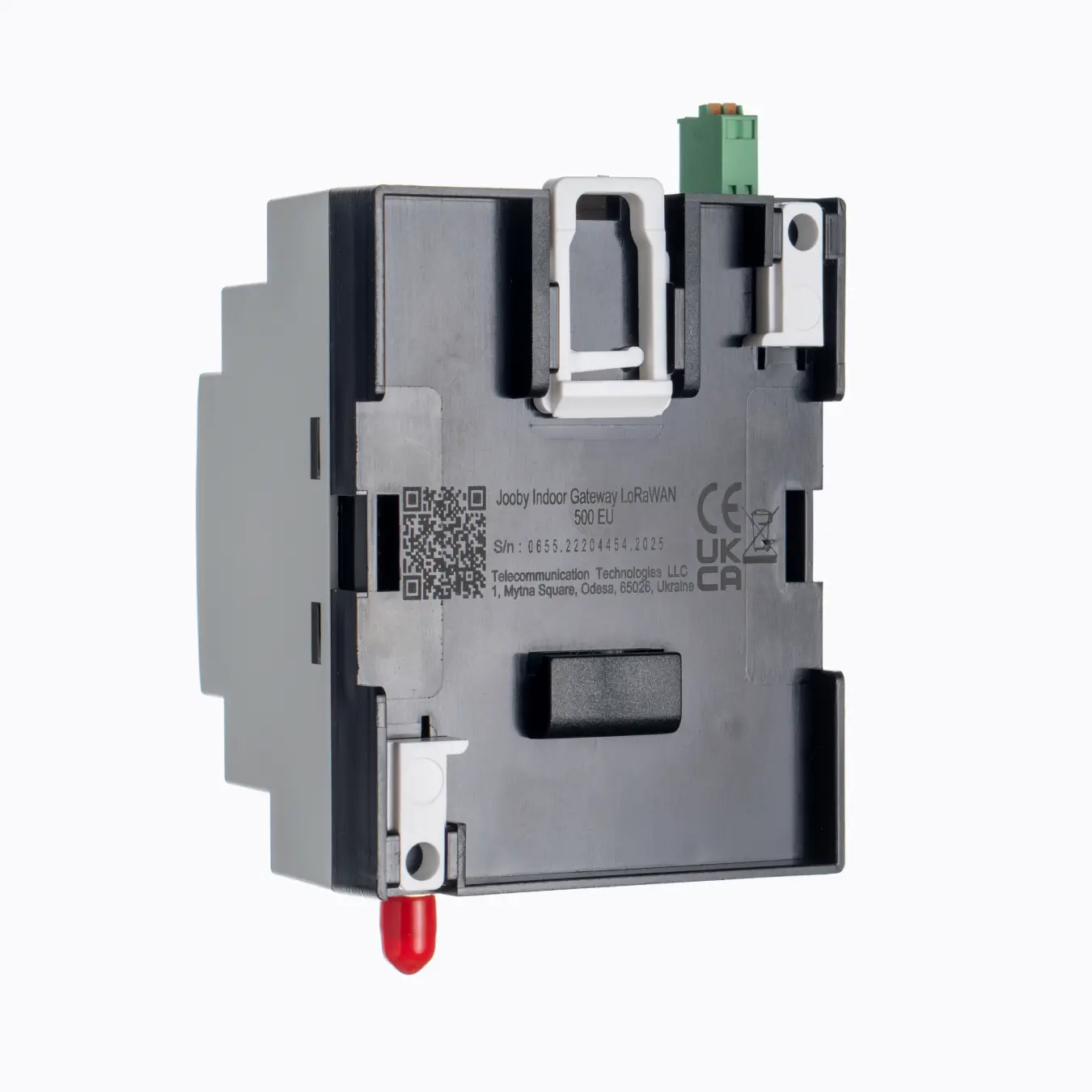

Installation Method

• DIN rail or wall mounting

Radio Frequency Specifications

LoRaWAN

• Operating Frequency:
  • EU868
  • On request: AU915,AS923, KR920, IN865
• Transmit Power: 22 dBm (max.)
• Receiver Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps

How it works

The gateway functions similarly to a stable cellular network. Positioned near radio sensors, it collects data through the LoRaWAN network. For instance, in a residential complex, the gateway gathers information from sensors monitoring water, gas, heat, or electricity meters. This data is then securely sent to the resource provider’s server.
