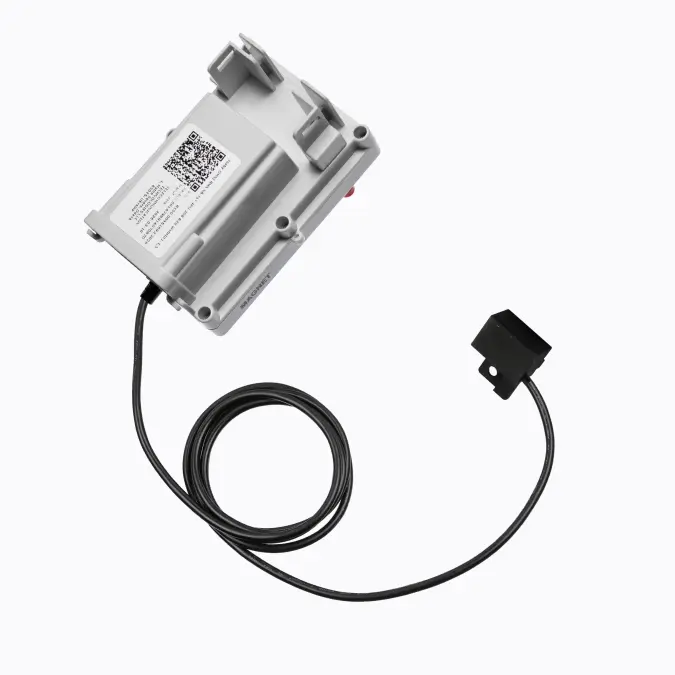

Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-1,5 - Image 2

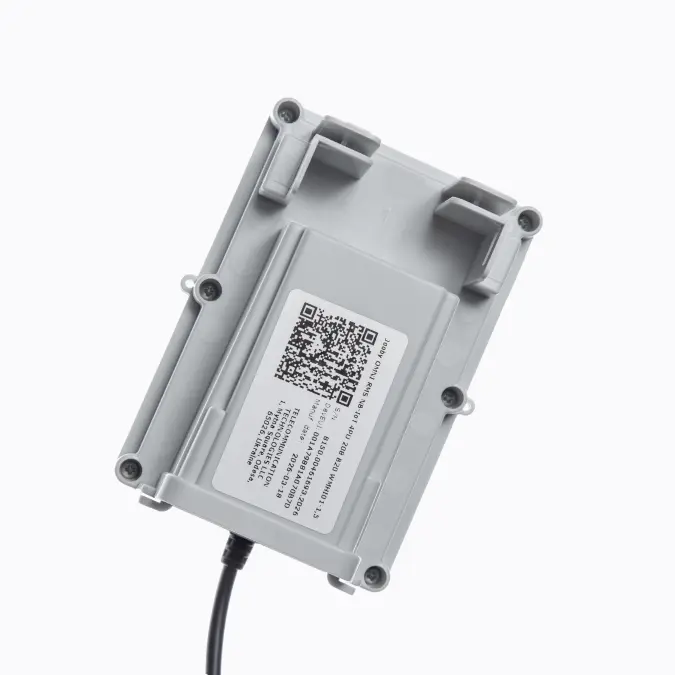

Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-1,5 - Image 3
Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-1,5 - Image 4

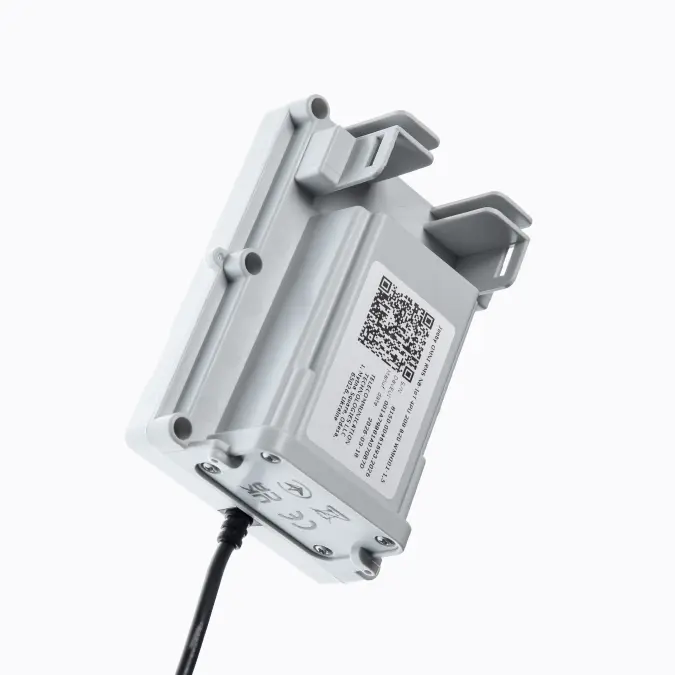

Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-1,5 - Image 5

Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-1,5

€ 119,00

The radio module with a sensor for HIDROCONTA hidroJet water meters is designed to automatically read pulses from metering devices and transmit data via the secure LoRaWAN wireless network. The IP68/68 protection rating helps ensure reliable resistance to dust and water exposure. The device is supplied with a 3 m external antenna.

The module is powered by an energy-efficient battery that provides at least 10 years of autonomous operation when data is transmitted four times per day.

The collected data is processed and displayed in a unified metering system, allowing users to monitor resource consumption promptly. The system also keeps logs with hourly and daily detail.

The data transmission interval can be adjusted in the mobile application, from once per hour to once per day.

The warranty period is:
– 24 months for retail sales;
– up to 60 months (5 years) for project deliveries.

*The cable length depends on the sensor model (see Cable length table).

SKU: Jooby OMNI RMS NB-IoT 4PU 208WMHI01-1,5 Categories: , Brand:

Description

Download

Datasheet



How it works

The Jooby pulse radio module is installed on a wall or another flat surface close to the meters. The device is then connected to water, gas, heat, or electricity meters using a sensor. To activate the radio module, a magnet is held against the corresponding icon on the housing for 7 seconds. Instant readings can also be sent using the touch button.

The installation process takes only a few minutes and does not require removing the meter.

After activation, the device transmits readings via the LoRaWAN network to the base station. The data is then forwarded to the resource provider’s server and becomes available in the Jooby RDC Dashboard administrative panel. To ensure reliable data storage, the readings are saved in built-in non-volatile memory.

The device is certified by the LoRa Alliance, confirming its compliance with international LoRaWAN network standards.

Sensor specifications

Parameter name Parameter value
Compatible meter model  HIDROCONTA hidroJet
Pulse coefficient, pulses/m³  0.1
Basic cable length, m*  1.5
Sensor sealing rating  ІР68
Operating temperature  -30 °С…+85 °С

*Upon request, the cable length can be 0.5 m or from 1 m to 19 m inclusive in 1 m increments

Cable length table

Cable length, m Sensor part number
0.5 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-0.5 EU
1.5 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-1.5 EU
2 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-2 EU
3 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-3 EU
4 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-4 EU
5 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-5 EU
6 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-6 EU
7 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-7 EU
8 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-8 EU
9 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-9 EU
10 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-10 EU
11 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-11 EU
12 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-12 EU
13 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-13 EU
14 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-14 EU
15 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-15 EU
16 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-16 EU
17 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-17 EU
18 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-18 EU
19 Jooby OMNI RMS LoRaWAN 4PU 208 EU WMHI01-19 EU

Additional information

Weight 1 kg
