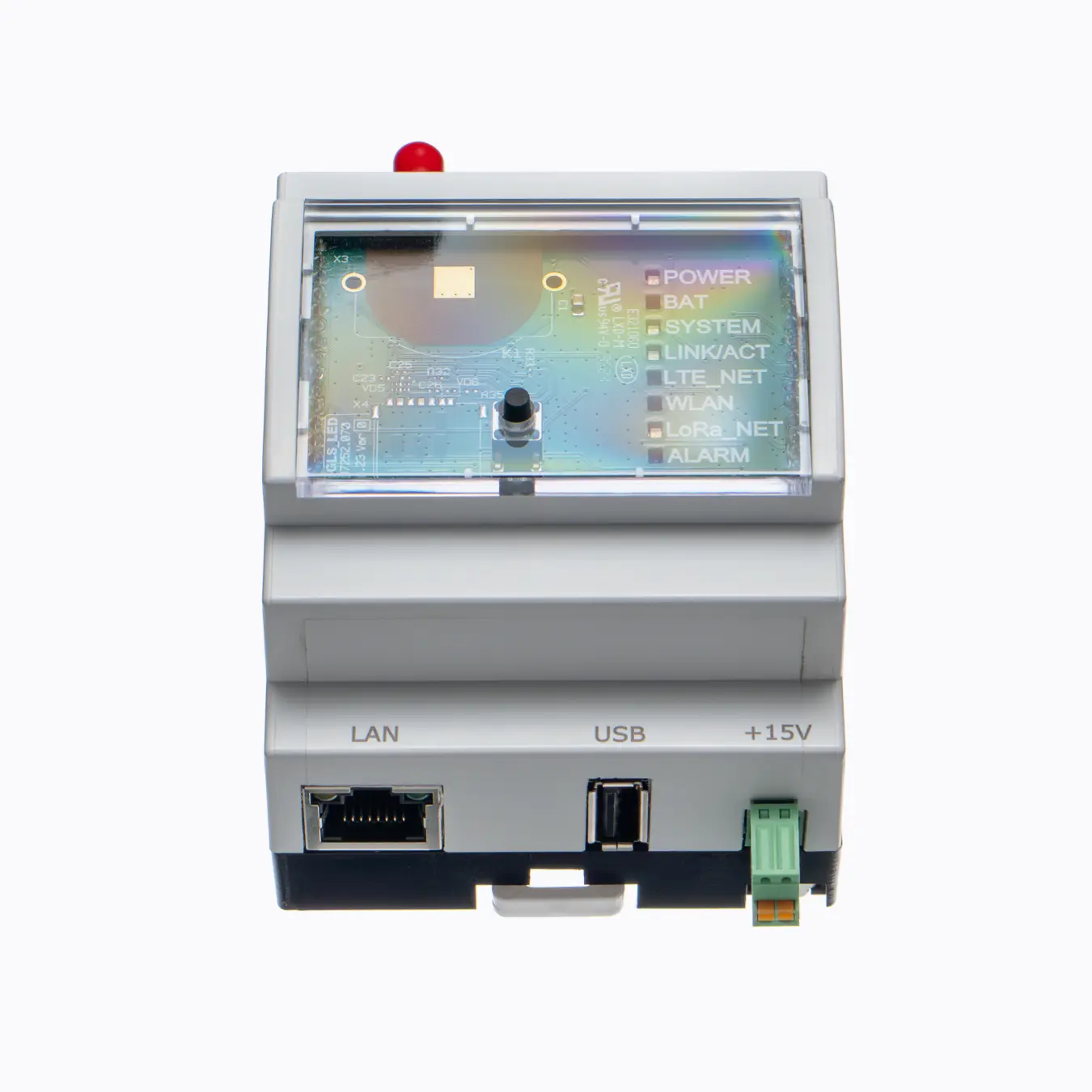

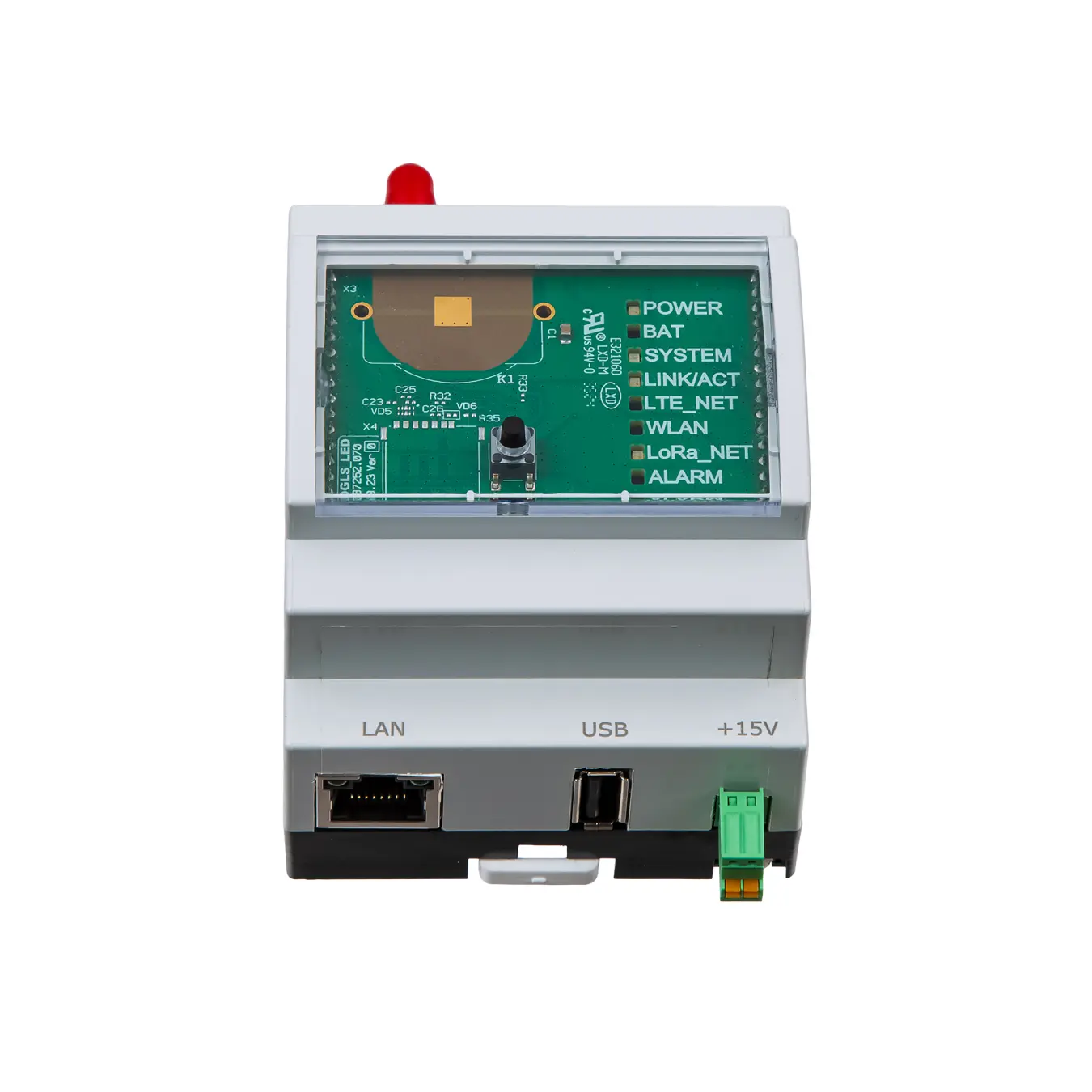

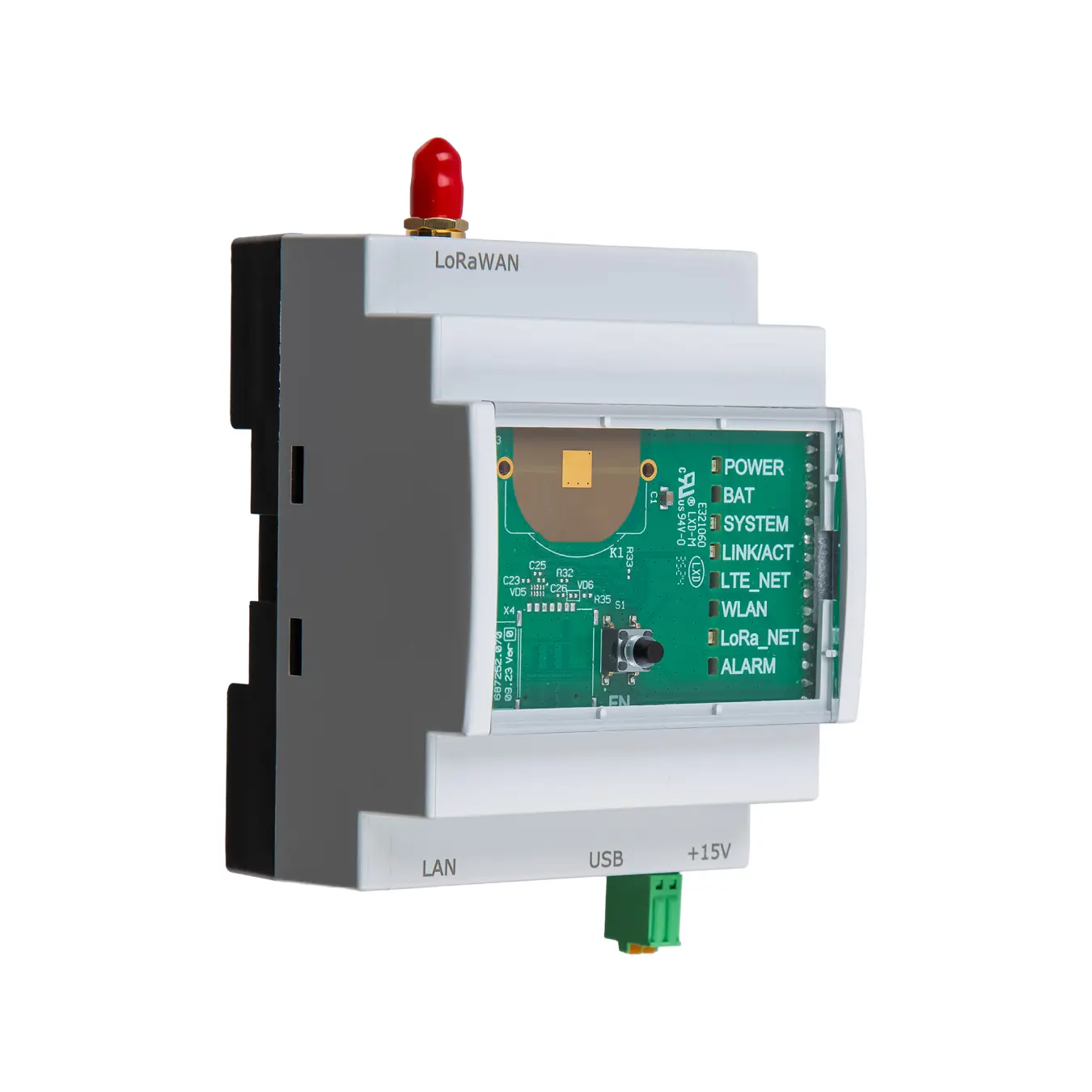

Jooby Indoor Gateway LoRaWAN 502 EU

Description

Gateway Specifications

Computer Component

• Arm Cortex-A7
• DDR3 RAM 512MB
• 8GB eMMc (optional 16GB eMMc)

LoRaWAN

• Module: SX1302 or SX1303 mini PCIe card
• Channels: Up to 8 channels
• RX Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps
• TX Power: 22 dBm (max.)

Power Supply

• PoE (IEEE 802.3af-compliant), Mode B (midspan), 4/5(+),7/8(-),  42~57V DC
• External power adapter 220V/15V

Power Consumption

• 10 W (max.)

Ethernet

• RJ45 (10/100Mbps) with surge protection and optional lightning protection

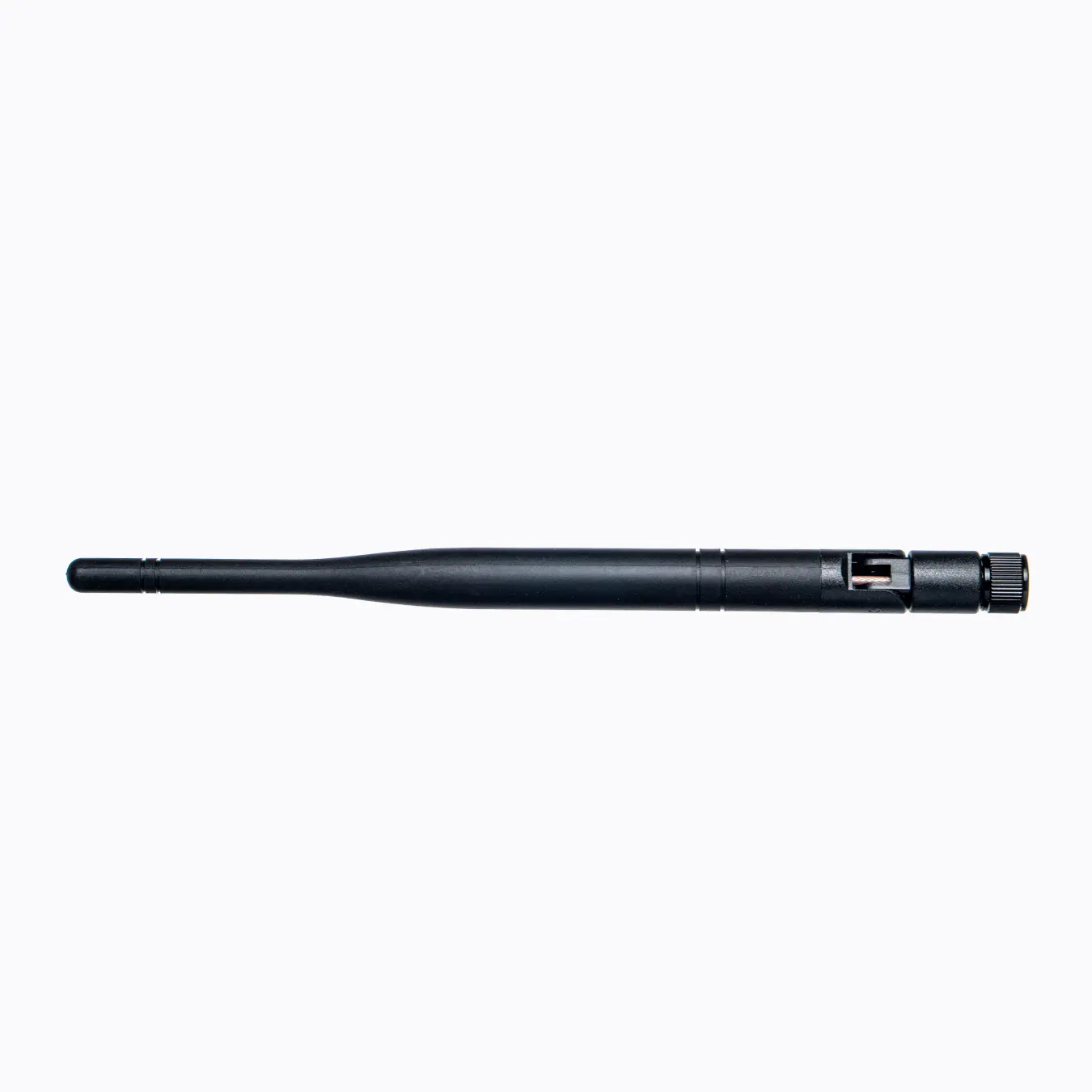

Antenna

• SMA type connectors

Enclosure Material

• ABS, V0 UL-94

Weight

• ~ 0.16 kg

Dimensions

• 107 mm x 70 mm x 59 mm

Operating Temperature

• -40˚C to +85˚C

Storage Temperature

• -40˚C to +85˚C

Operating Humidity

• 0% to 95% (non-condensing)

Storage Humidity

• 0% to 95% (non-condensing)

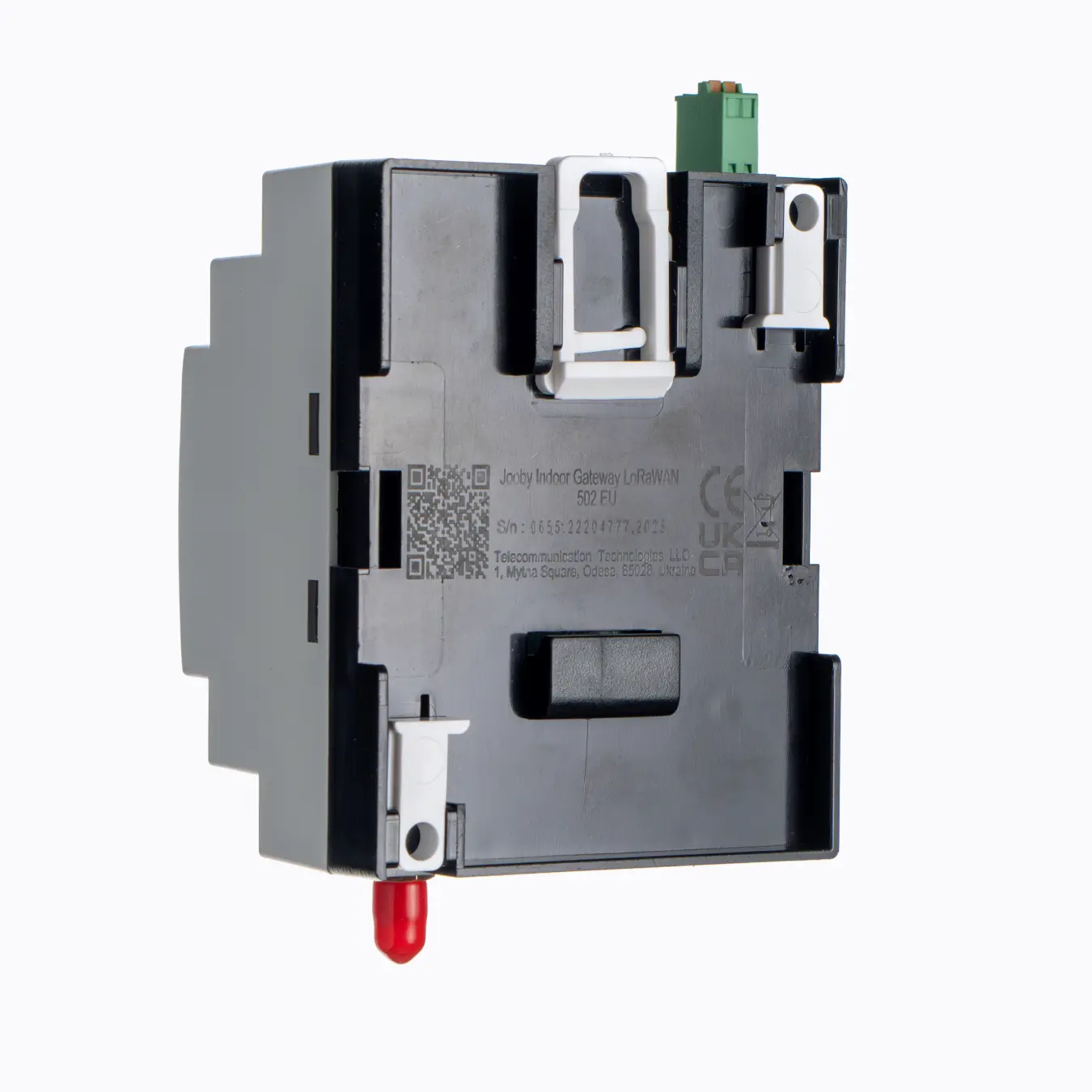

Installation Method

• DIN rail or wall mounting

Radio Frequency Specifications

LoRaWAN

• Operating Frequency:
  • EU868
  • On request: US915, AS923, AU915, KR920, IN865
• Transmit Power: 22 dBm (max.)
• Receiver Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps

How it works

Gateways operate within a cellular network and are ideally positioned where radio sensors are most concentrated. For example, if a gateway is used to collect and relay meter readings, it should be placed near a residential complex. The base station gathers data from the radio modules that read the meters and then automatically forwards this information. The gateways then transmit the aggregated data to the end server over a LoRaWAN network.
