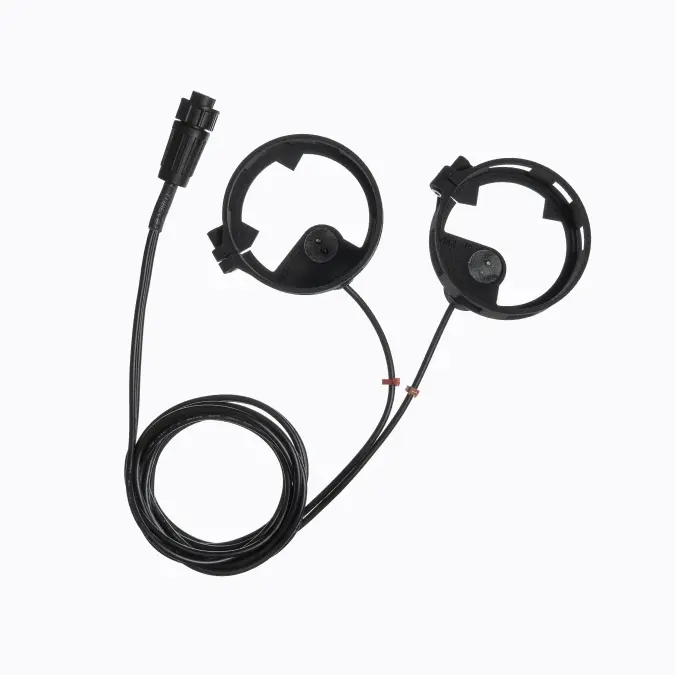

JOOBY AQUARIS SNS WOGI01 101

Description

How it works

Once installed on each meter case and connected to the radio module, the sensor begins counting the revolutions of the water meter’s dial and transmits this data to the pulse radio module. The sensors can simultaneously collect data from multiple water meters. The data is transmitted as meter pulses, proportional to the number of revolutions of the water meter’s dial. All information collected by the sensor is stored in the radio module’s non-volatile memory and is transmitted at regular intervals via the LoRaWAN network to a server, where it is converted into readable meter readings.

Sensor Specifications

• Sensor model — Jooby Aquaris SNS WOGI01 101

• Water meter model — Gidrotek E-T 1,6-U

• Pulse coefficient — 1 pulse per 1 liter

• Operating temperature — 1 °C … 60 °C
