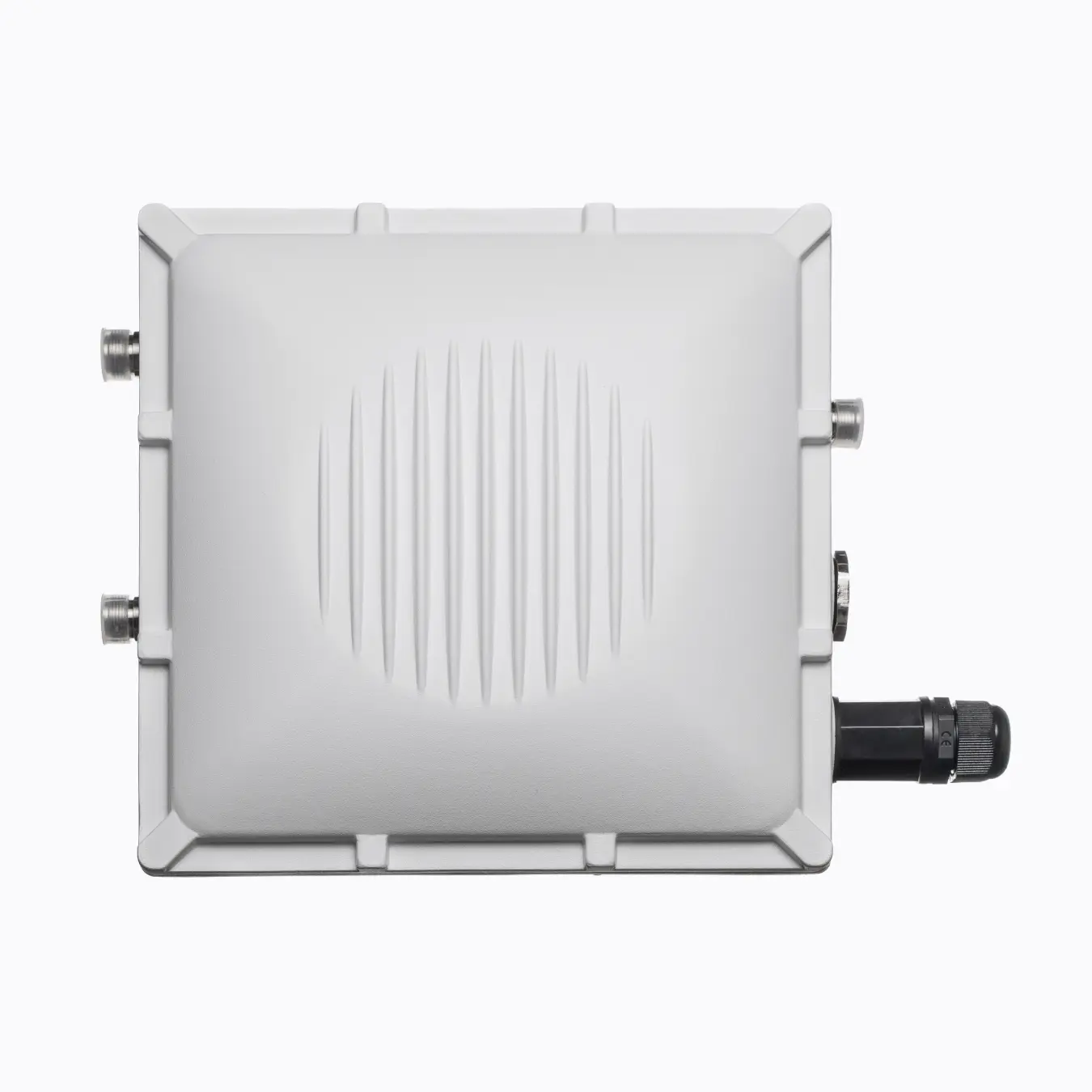

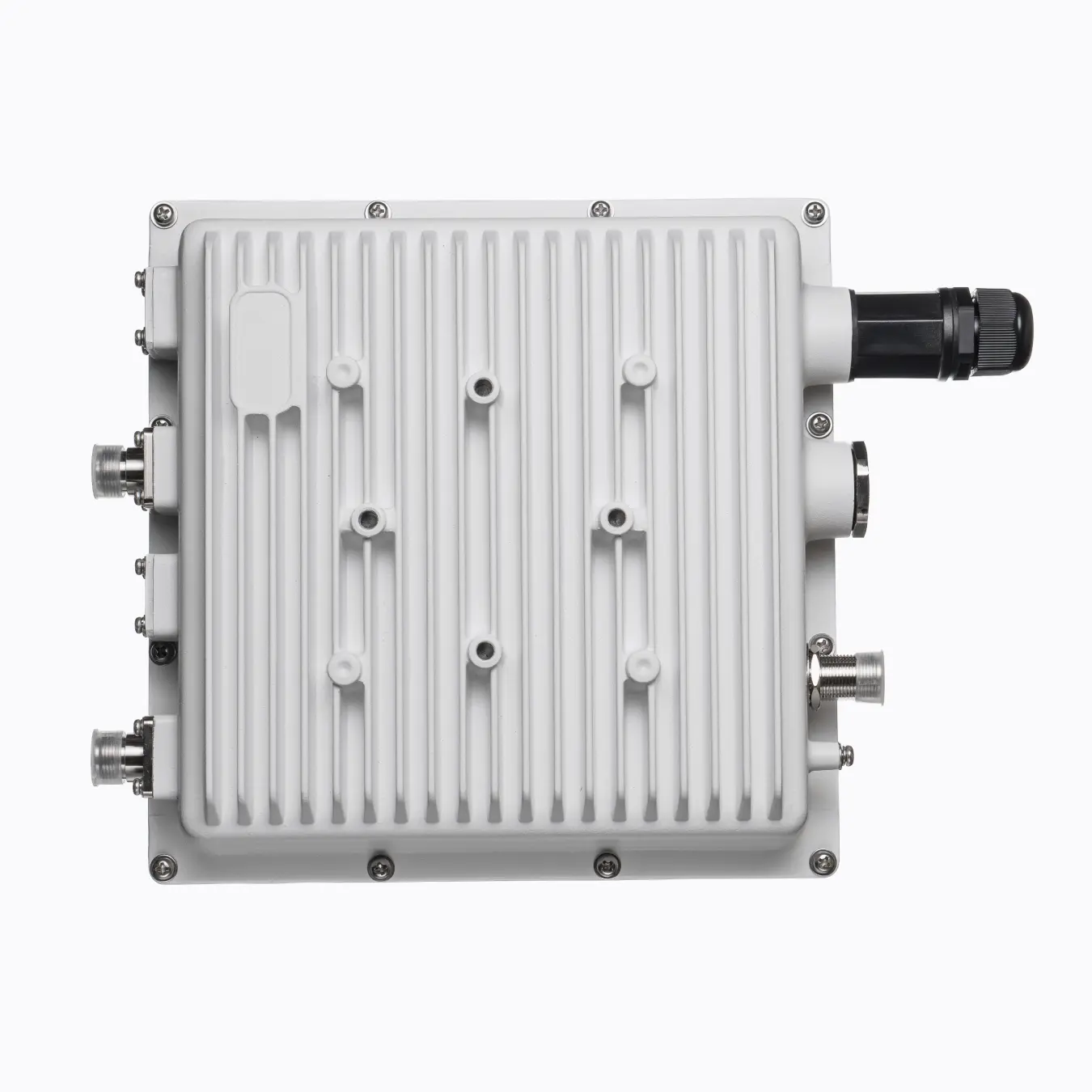

Jooby Outdoor Gateway LoRaWAN 401 EU

Description

Gateway Specifications

Computer Component

• Arm Cortex-A7
• DDR3 RAM 512 MB
• 8 GB eMMc (optional 16 GB eMMc)

LoRaWAN

• Module: SX1302 or SX1303 mini PCIe card
• Channels: Up to 8 channels
• RX Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps
• TX Power: 22 dBm (max.)
• Frequency: EU868, US915
  • On request: AS923, AU915, KR920, IN865

LTE

• Supports Quectel EG915N
  • LTE-FDD: B1/B3/B7/B8/B20
  • GSM: EGSM900/DCS1800

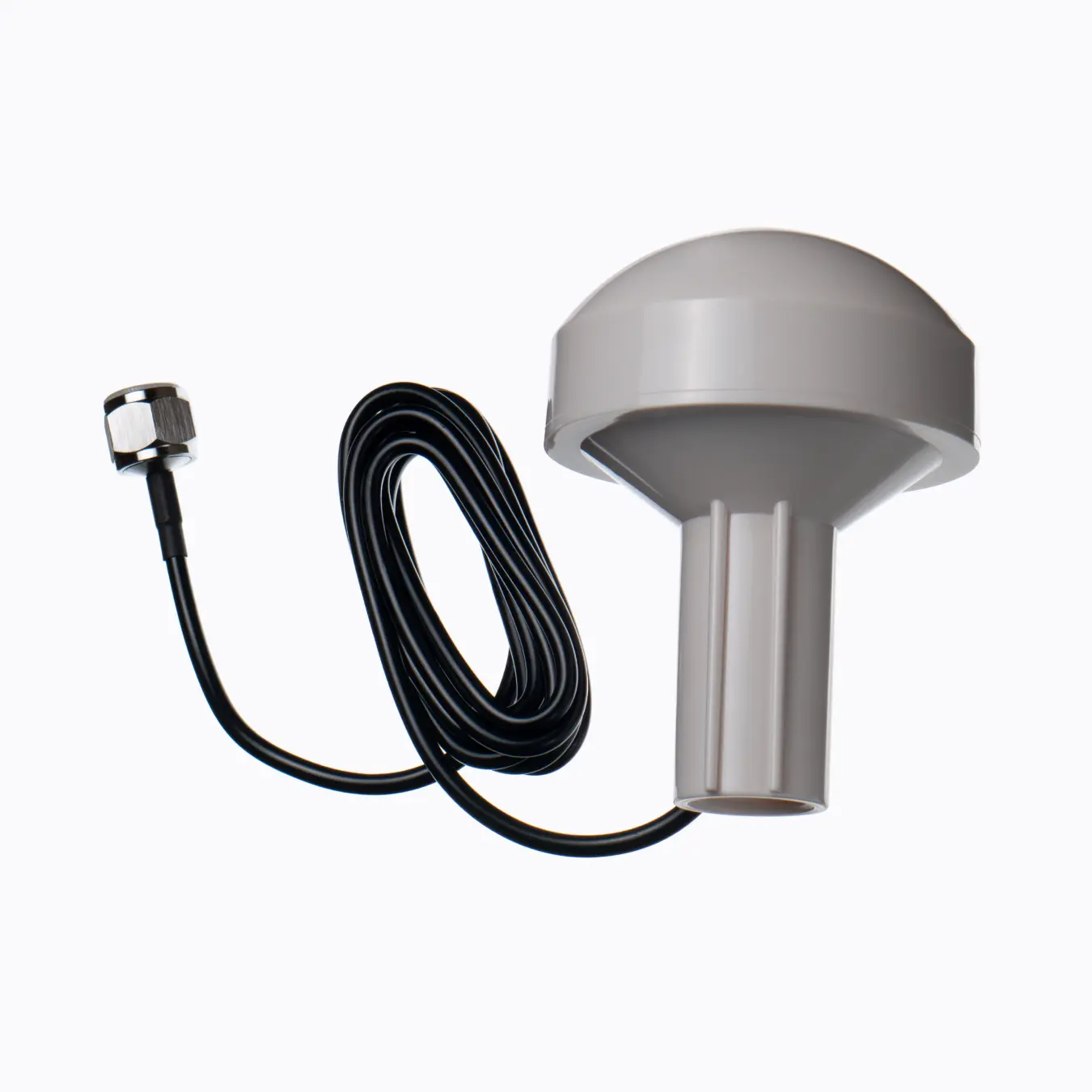

GNSS

• Integrated module into the LTE-module EG915N

Power Supply

• PoE (IEEE 802.3af/at-compliant) — 42~57 A DC
• Backup lithium-polymer battery: DC-12-10800 mAh DC-12.6 V

Power Consumption

• 10 W (max.)

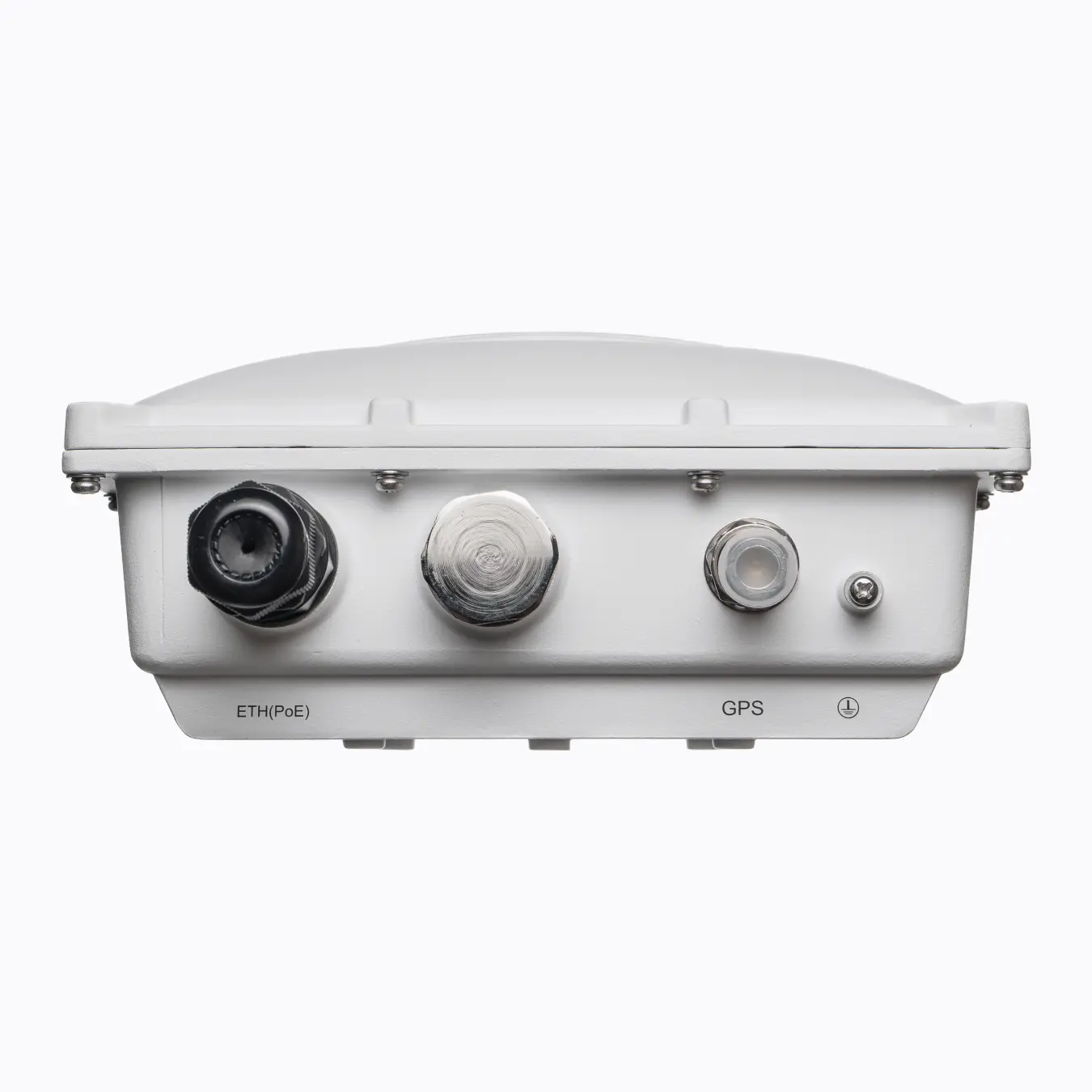

Ethernet

• RJ45 (10/100 Mbps) with surge protection and lightning protection

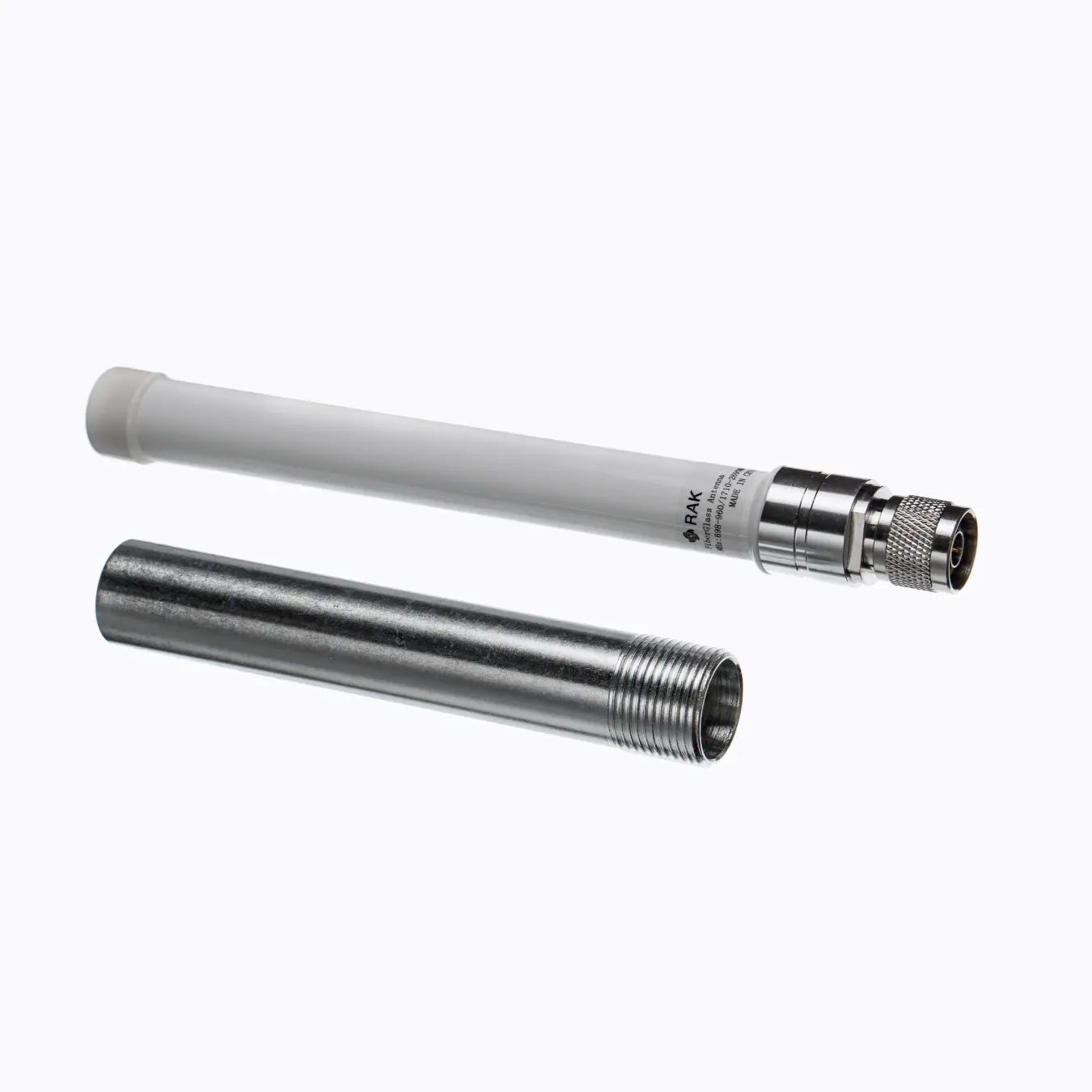

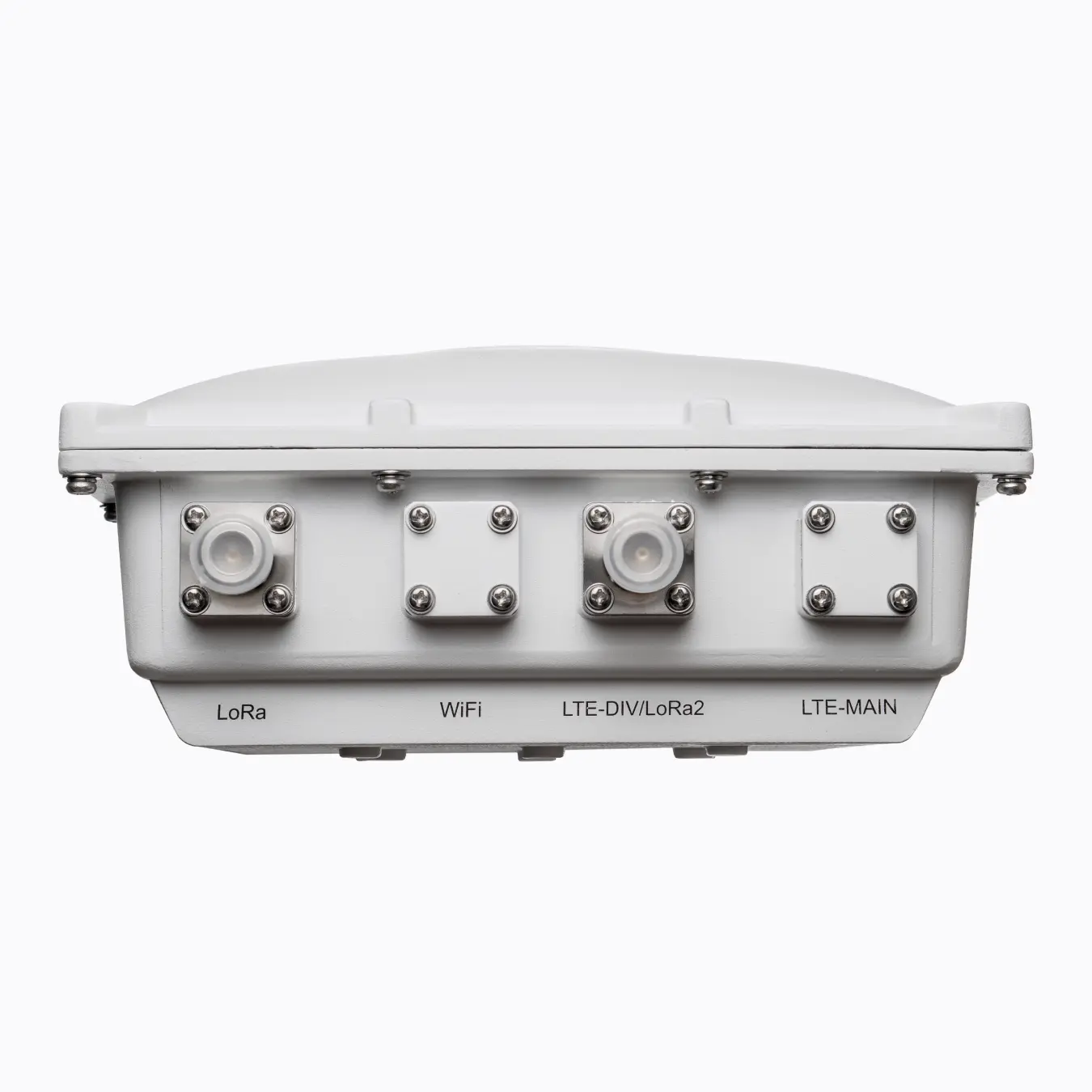

Antenna

• 3 N-type connectors

Protection Degree

• IP67

Enclosure Material

• Aluminum

Weight

• Approximately 2.74 kg (with backup battery)

Dimensions

• 295 mm x 220 mm x 105 mm

Operating Temperature

• -40˚C to +60˚C

Storage Temperature

• -40˚C to +85˚C

Operating Humidity

• 0% to 95% (non-condensing)

Storage Humidity

• 0% to 95% (non-condensing)

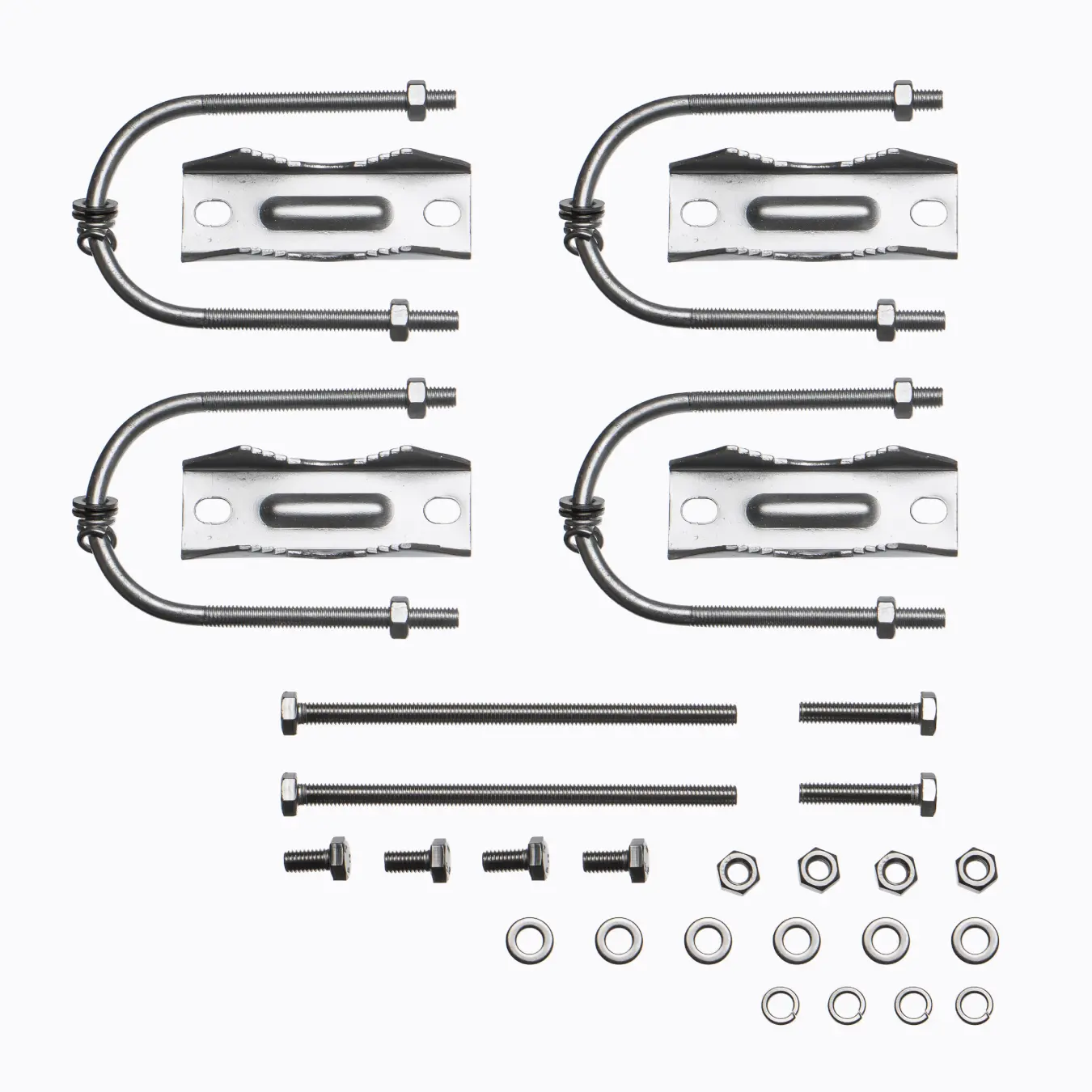

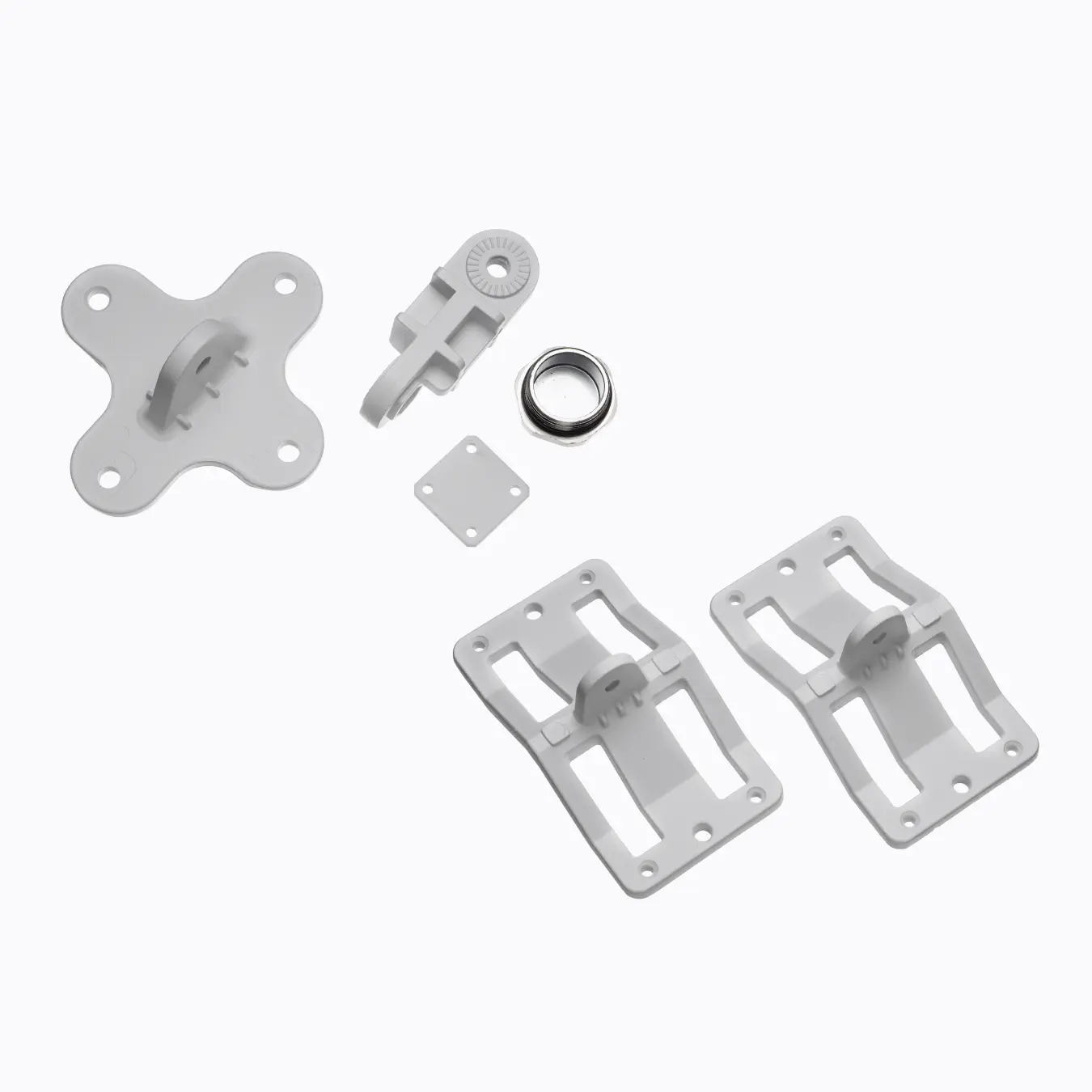

Installation Method

• Pole or wall mounting

Radio Frequency Specifications

LoRaWAN

• Operating Frequency:
  • EU868, US915
  • On request: AS923, AU915, KR920, IN865
• Transmit Power: 22 dBm (max.)
• Receiver Sensitivity:
  • Typical sensitivity level (EU868/US915):
    • -141 dBm at SF12 BW 125 kHz
    • -127 dBm at SF7 BW 125 kHz
    • -111 dBm at FSK 50 kbps



How it works

The gateways operate within the cellular network’s coverage area, strategically positioned near clusters of radio modules that collect various types of data. For example, a gateway can be installed near a residential complex where radio modules gather information from resource meters, including water, gas, and electricity. These radio modules transmit the collected data to the gateway via the LoRaWAN network. The gateway then forwards this information to a destination server for processing. Additionally, data can be transferred from the gateway to the server using a LAN connection.
