JOOBY AQUARIS SNS WMBA02 100

 26,78

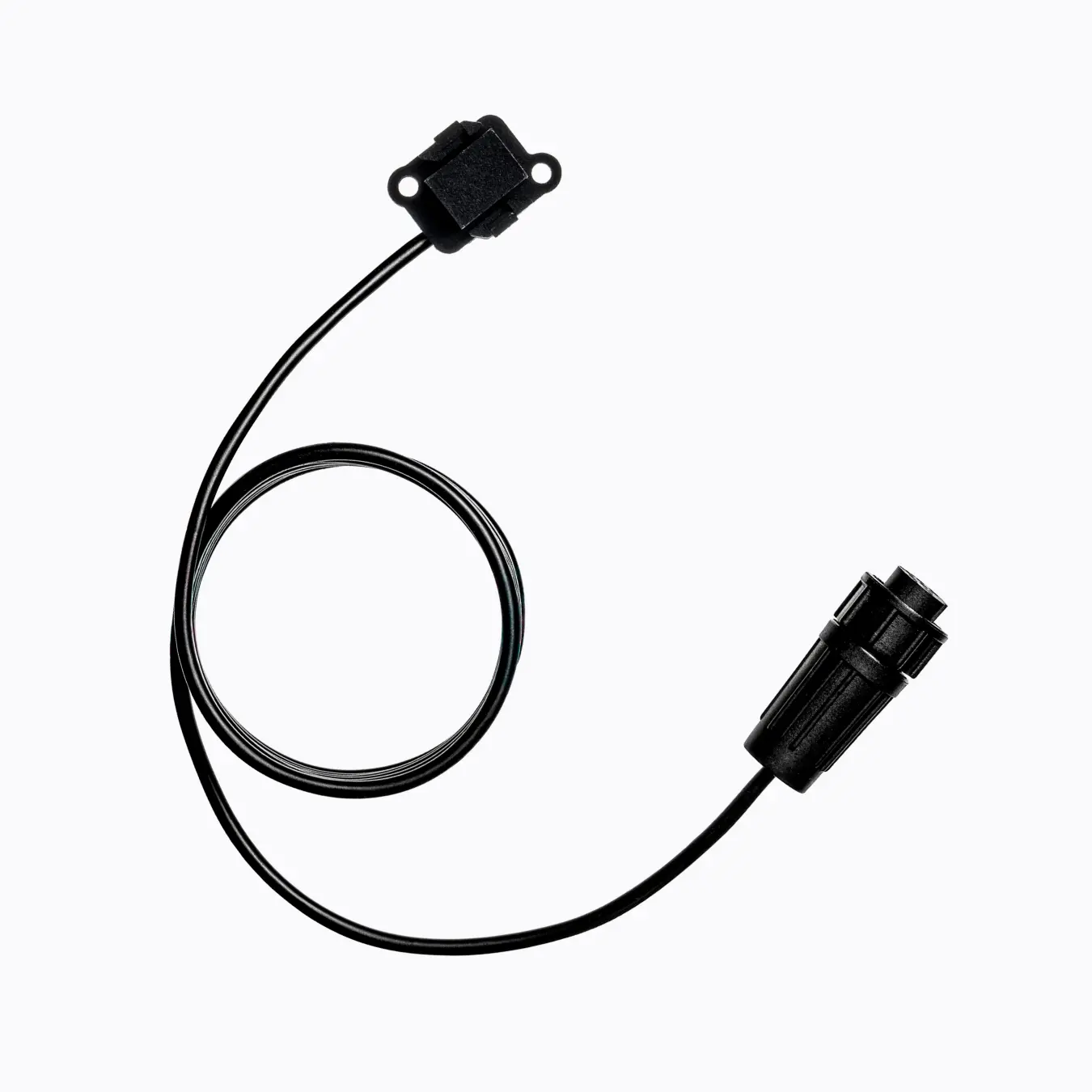

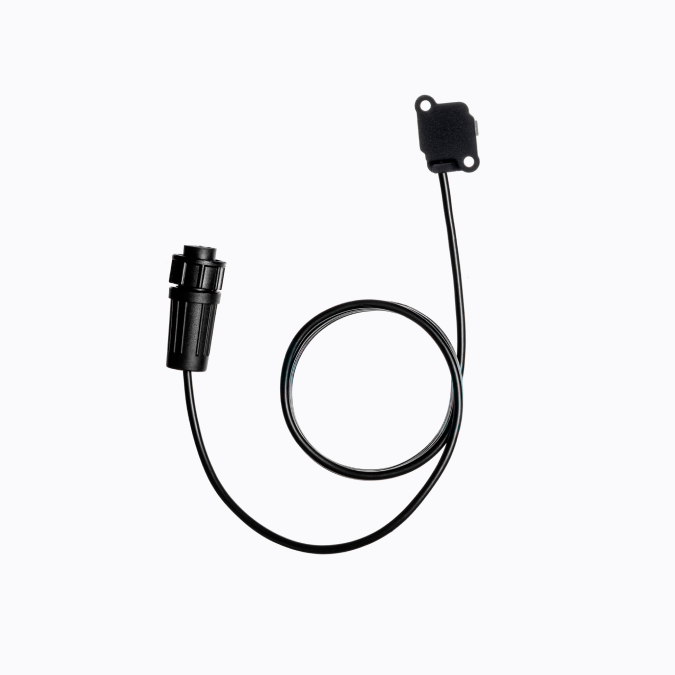

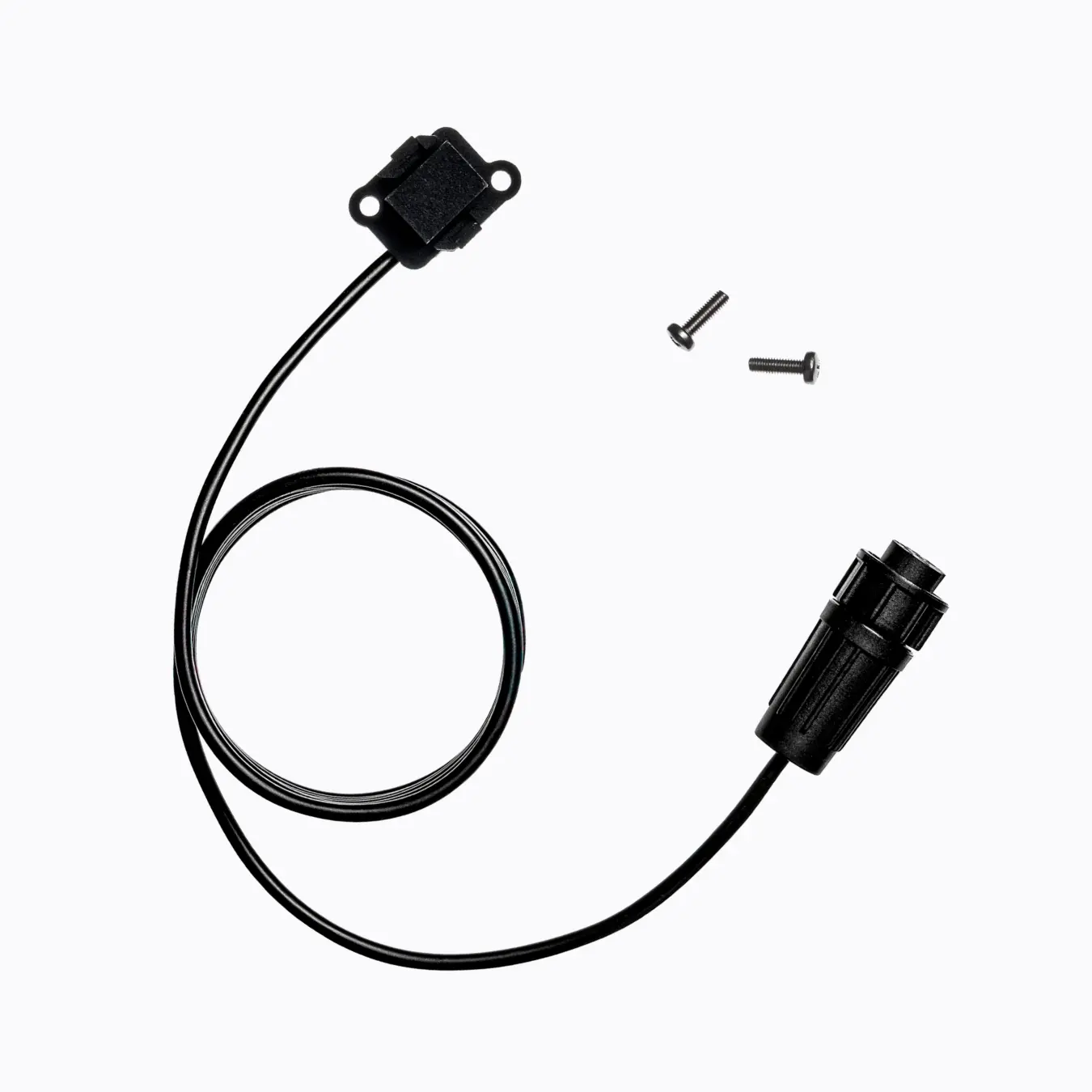

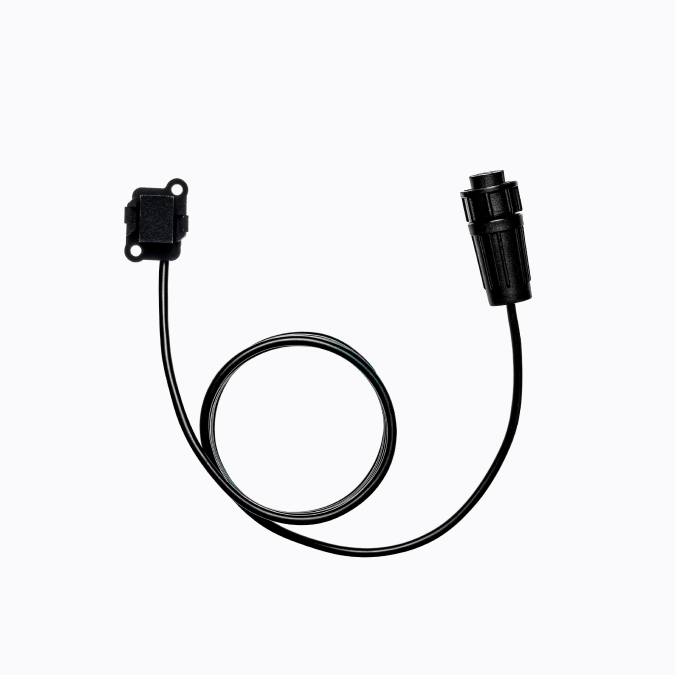

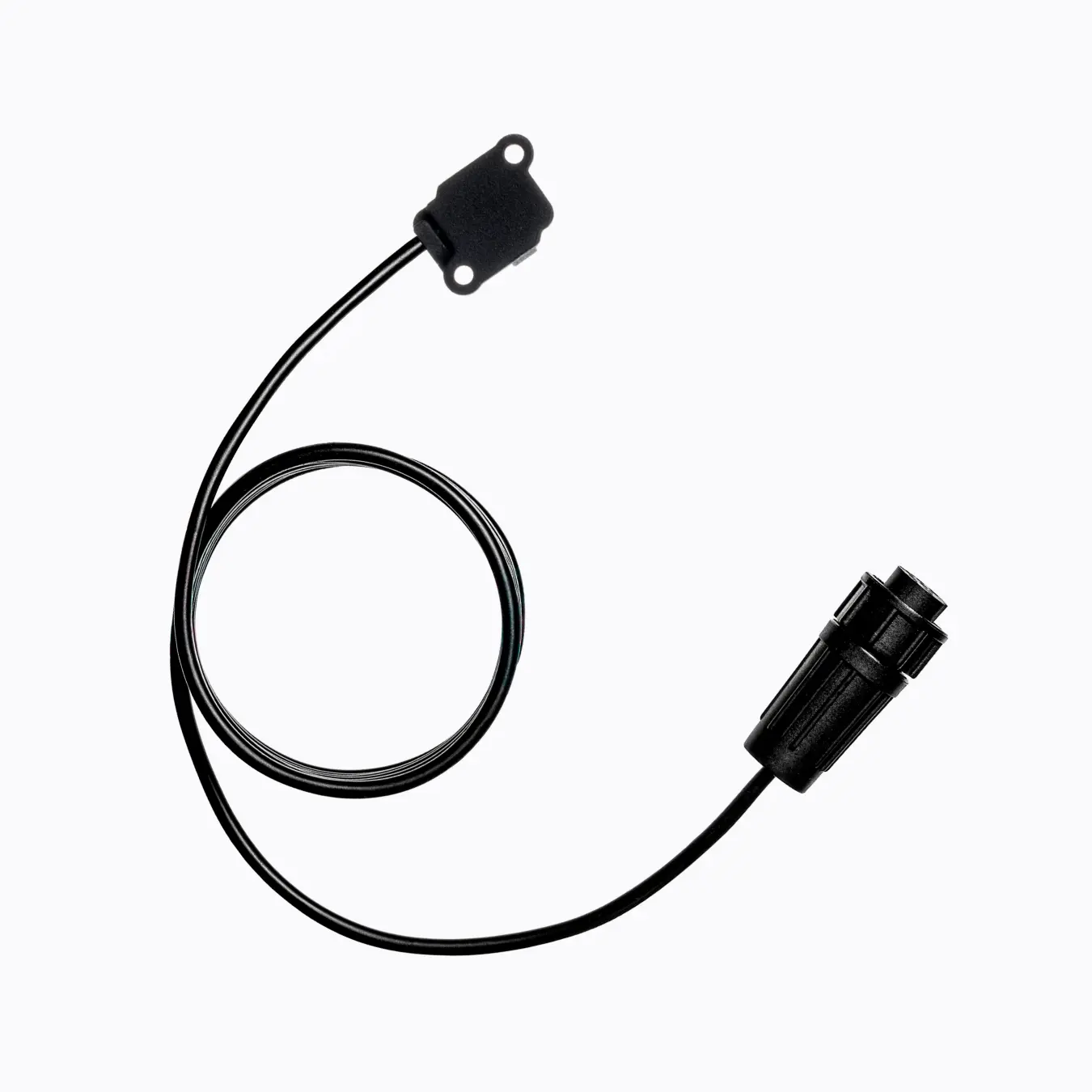

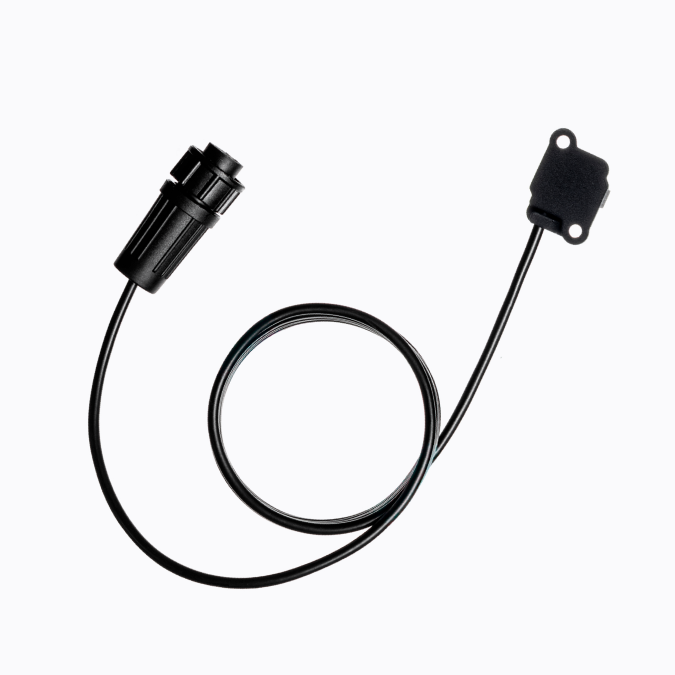

Smart external connection sensor for Baylan water meters

Magnetic sensor for transmitting water meter readings to the Jooby OMNI RM LoRaWAN 4PU 204 EU pulse radio module.

The sensor is installed on the water meter housing and connected to the pulse radio module. It detects the magnet’s rotations inside the meter and transmits the data directly to the radio module.

SKU: JOOBY AQUARIS SNS WMBA02 100 Category: Tag:

Description

How it works

Once attached to the meter and connected to the radio module, the sensor begins counting the magnet’s rotations within the water meter. It generates pulses according to a predefined ratio and sends this information to the pulse radio module. The pulses represent data equivalent or proportional to the magnet’s revolutions. This information is stored in the radio module’s non-volatile memory and is periodically transmitted via the LoRaWAN network to a server, where it is converted into meter readings.

Sensor Specifications

  • Sensor model — Jooby Aquaris SNS  WMBA02 100
  • Water meter model — Baylan KK-12
  • Pulse coefficient — 1 pulse per 100 liter
  • Operating temperature — 1 °C … 60 °C
