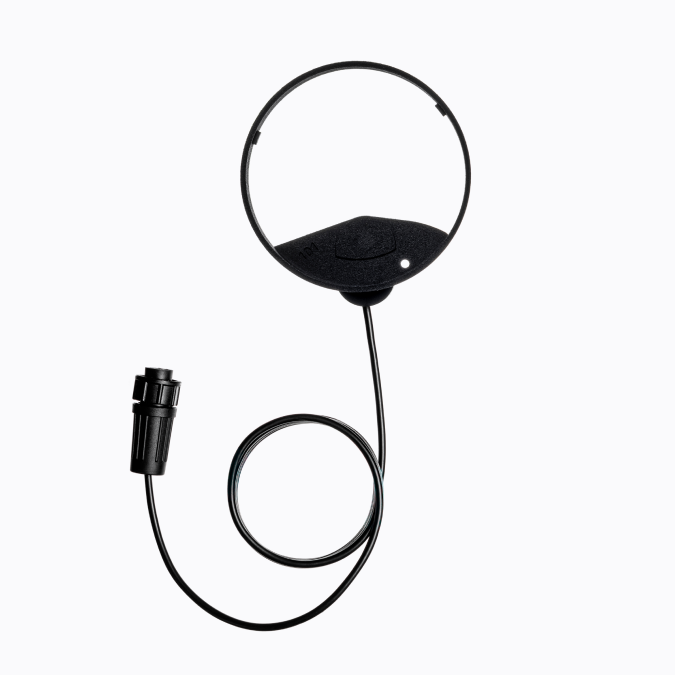

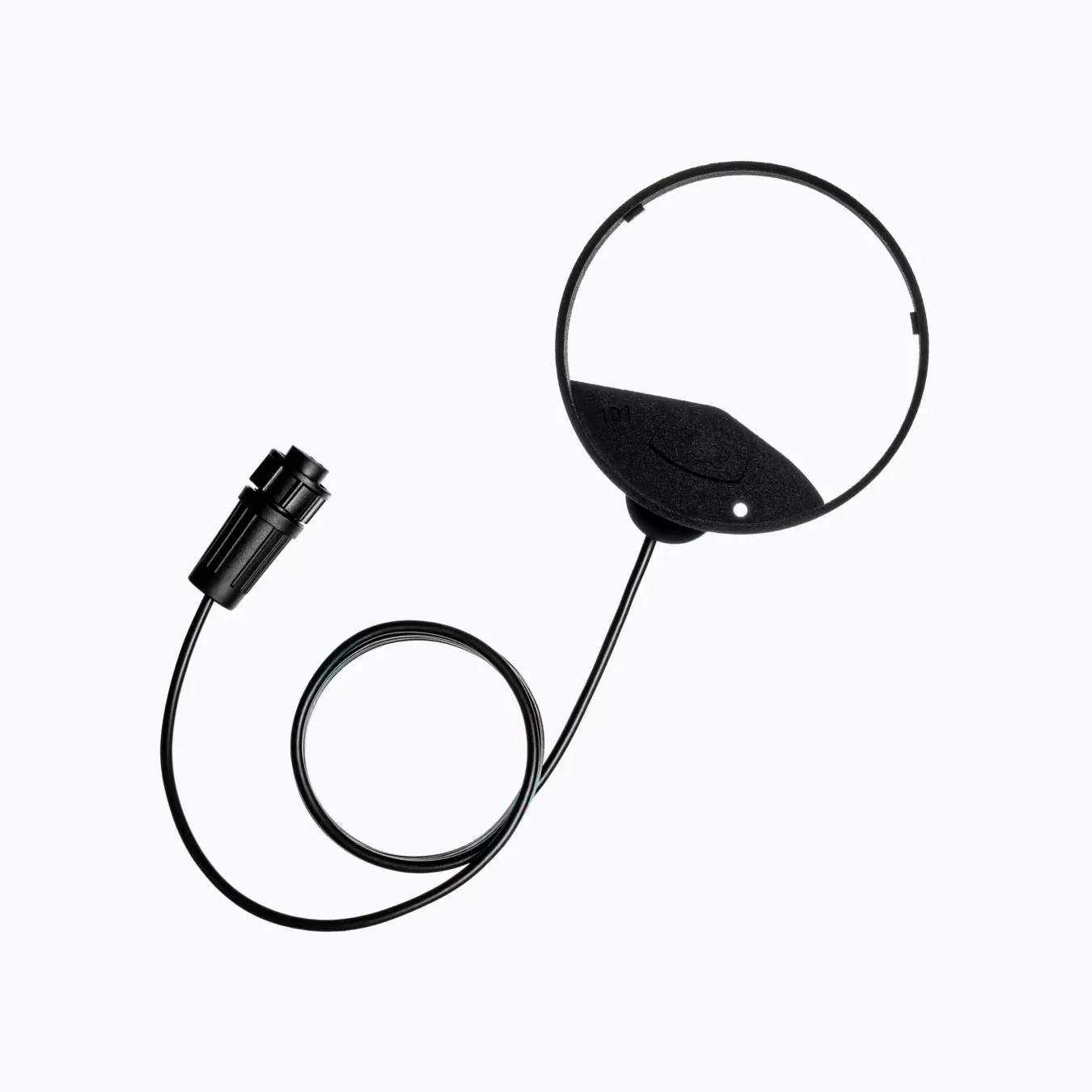

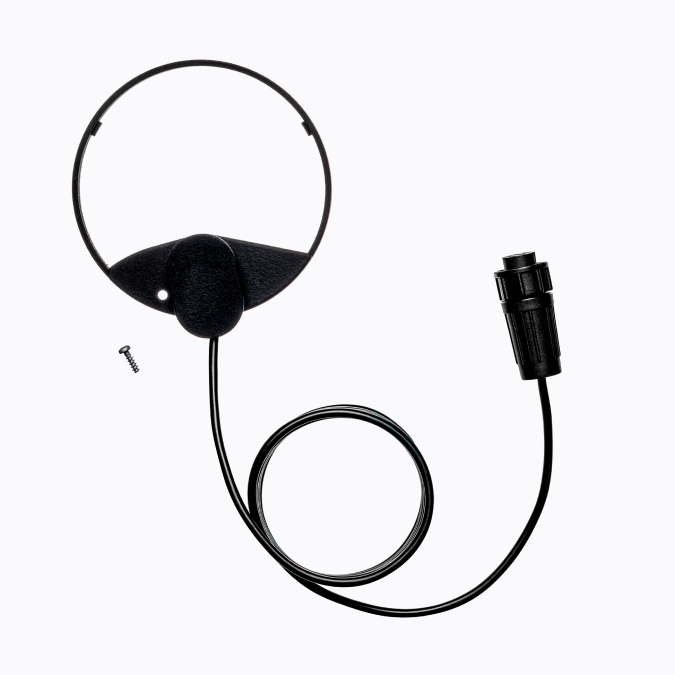

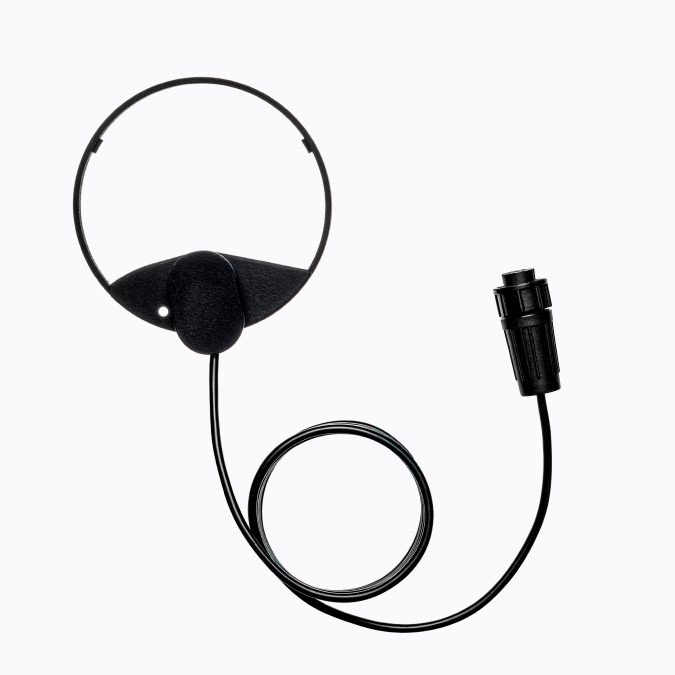

Smart external connection sensor for Sensus water meters

This inductive sensor is designed to transmit data from analog water meters to the Jooby OMNI RM LoRaWAN 4PU 204 EU pulse radio module.

The sensor is mounted on the water meter’s enclosure and connected to the radio module. It reads the number of revolutions of the water meter’s measuring hand and transmits this data to the pulse radio module.

SKU: Jooby Aquaris SNS WISE03 100 Category: Tag:

Description

How it works

Once the sensor is installed on the meter’s enclosure and the radio module is activated, the data reading process begins. The sensor transmits information to the radio module in the form of counted pulses, with the number of pulses corresponding to the number of revolutions of the water meter’s hand or a multiple thereof. Data is transmitted via a 1.5-meter cable equipped with a PY07-6 connector. All collected information is stored in the radio module’s non-volatile memory and is sent to the resource provider’s server via the LoRaWAN network at specified intervals. The metering system processes the received information, converting it into visible data that enables the supplier to monitor and analyze resource consumption in real-time.

Sensor Specifications

  • Sensor model — Jooby Aquaris SNS WISE03 100
  • Water meter model — Sensus 620
  • Pulse coefficient — 1 pulse per 1 liter
  • Operating temperature — 1 °C … 60 °C
