JOOBY AQUARIS SNS WISE02 100

 26,78

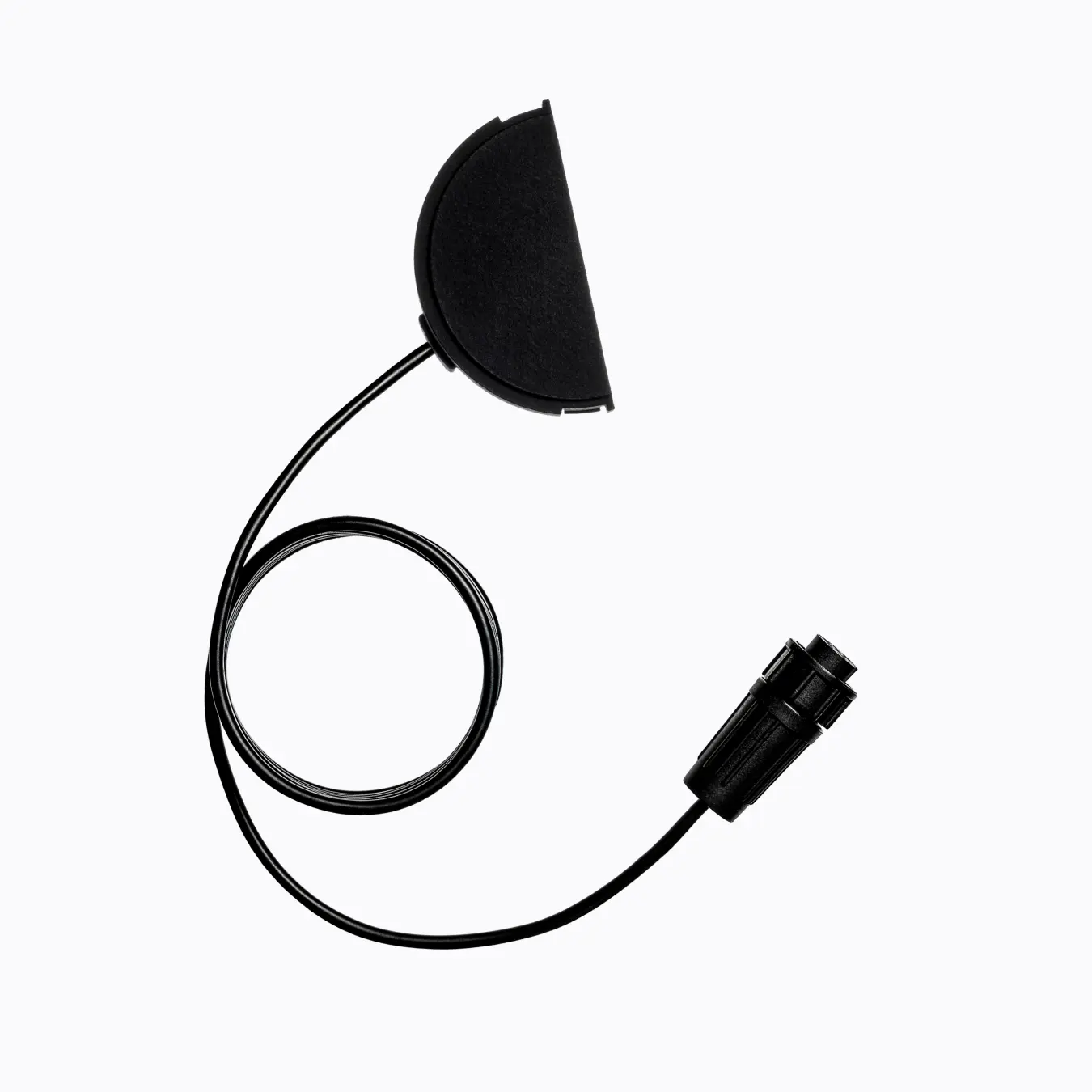

Smart external connection sensor for Sensus water meters

This inductive sensor is designed to transmit data from analog water meters to the Jooby OMNI RM LoRaWAN 4PU 204 EU pulse radio module.

The sensor is installed on the water meter’s enclosure and connected to the radio module. It detects the number of revolutions of the water meter’s measuring hand and sends this data to the pulse radio module.

SKU: JOOBY AQUARIS SNS WISE02 100 Category: Tag:

Description

How it works

Once the sensor is installed on the meter’s enclosure and the radio module is activated, the data reading process begins. The sensor transmits information to the radio module as counted pulses, which correspond to the number of revolutions of the water meter’s hand or a multiple thereof. Data is sent through a 1.5-meter cable with a PY07-6 connector. The collected information is stored in the radio module’s non-volatile memory and is periodically transmitted to the resource provider’s server via the LoRaWAN network. The metering system processes this information, converting it into visible data, allowing the provider to monitor and analyze resource consumption in real-time.

Sensor Specifications

  • Sensor model — Jooby Aquaris SNS WISE02 100
  • Water meter model — Sensus  JET (RJETCRG1)
  • Pulse coefficient — 1 pulse per 1 liter
  • Operating temperature — 1 °C … 60 °C
